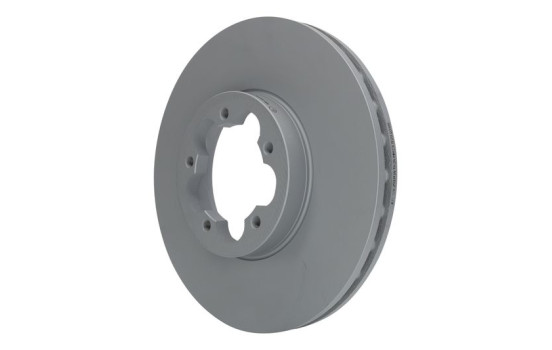

Brake Disc 24.0128-0293.1 ATE

Brake Disc 24.0128-0293.1 ATE Brake Disc 24.0128-0293.1 ATE, Image 2

Product number: 0795188

Manufacturer number: 24.0128-0293.1

EAN: 4006633427166

€ 57,75

Incl. VAT
View product specifications
In stock
Delivery 12-02-2025
Secure payment
  • Free 30 days exchanges
  • Quality car parts
  • EU Delivery: 2-3 days
  • Ask our experts for advice

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Please your vehicle

Model

X

Type

X

Searching parts for your car

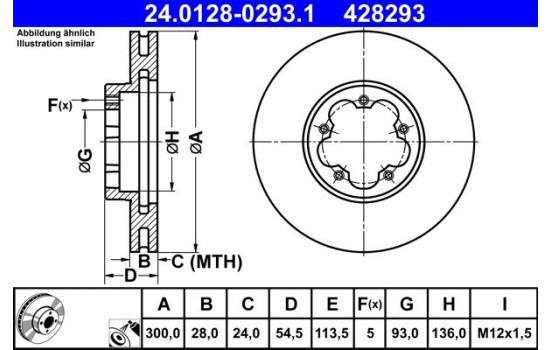

  • Specifications

    Outer diameter [mm]300,0
    Brake Disc TypeVented
    SurfaceCoated
    Number of Holes5
    Brake padsExclusive
    Inner diameter [mm]136,0
    Bolt Hole Circle Ø [mm]113,5
    Centering Diameter [mm]93,0
    Thread SizeM12X1,5
    Inspection TagE1 90R-02C0115 / 1079
    MAPP code available
    Guarantee2 years
    Height [mm]54,5
    Brake disc thickness (mm)28,0
    Minimum thickness (mm)24,0

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 18301
    € 38,89
    AP 25265
    ATE 24.0128-0293.1 (this product)
    BELACO BDS1984
    BLUE PRINT ADF124330
    € 46,62
    BORG & BECK BBD5341
    BOSCH 0 986 479 307
    € 40,80
    BRECO BS 8875
    BREMBO 09.A531.20
    € 59,23
    BSG BSG 30-210-027
    CAR 142.1755
    CHAMPION 562540CH
    CIFAM 800-1494
    COMLINE ADC1259V
    DELPHI BG5156C
    € 48,79
    DON PCD18902
    EUROBRAKE 5815312587
    EUROBRAKE 5815202587
    FEBI BILSTEIN 44034
    € 49,76
    FERODO DDF2798
    FERODO DDF1555
    € 67,01
    FERODO DDF1555C
    € 106,81
    FI.BA FBD382
    FTE BS7409
    FTE BS7409B
    FTE 9071273
    Manufacturer Manufacturer number Price
    FTE 9081166
    GALFER B1.G228-0293.1
    GIRLING 6067815
    HELLA PAGID 8DD 355 118-421
    € 74,64
    JP GROUP 1563105600
    JURID 563306J
    LYNXauto BN-1481
    MAGNETI MARELLI 361302040544
    MALÒ 1110660
    METELLI 23-1494
    METZGER 6110827
    MEYLE 715 521 7042
    € 48,07
    MINTEX MDC2264
    MOTAQUIP LVBD1812
    NATIONAL NBD1870
    NK 312587
    NK 202587
    QUARO QD9553
    SKF VKBD 81286 V1
    SWAG 50 94 4034
    TEXTAR 92231500
    € 64,39
    TOPRAN 303 975
    TRUSTING DF1488
    TRW DF6781S
    € 53,44
    VALEO 197054
    ZIMMERMANN 250.1379.20
    € 70,97

  • Applicability

    FORD
    TRANSIT Bus
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - CYRA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRRA, DRRB, DRRC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 135pk, 100kw - USRA, USRB
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 140pk, 103kw - H9FD
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi 4x4 - 2402ccm, 140pk, 103kw - H9FB
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 3.2 TDCi - 3199ccm, 200pk, 147kw - SAFA, SAFB
    TRANSIT Platform/Chassis
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CYRB, CYRC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CVRA, CVRB, CVRC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - CYRA
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRRA, DRRB, DRRC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.3 16V CNG RWD - 2261ccm, 136pk, 100kw - GZFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.3 16V LPG RWD - 2261ccm, 145pk, 107kw - GZFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.3 16V RWD - 2261ccm, 145pk, 107kw - GZFA, GZFB, GZFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi 4x4 - 2402ccm, 140pk, 103kw - H9FB
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 140pk, 103kw - H9FD, H9FB
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 3.2 TDCi RWD - 3199ccm, 200pk, 147kw - SAFA, SAFB
    TRANSIT Van
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CYRB, CYRC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CVRA, CVRB, CVRC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - CYRA
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRRA, DRRB, DRRC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 136pk, 100kw - USRA, USRB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.3 16V CNG RWD - 2261ccm, 136pk, 100kw - GZFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.3 16V LPG RWD - 2261ccm, 145pk, 107kw - GZFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.3 16V RWD - 2261ccm, 145pk, 107kw - GZFA, GZFB, GZFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi 4x4 - 2402ccm, 140pk, 103kw - H9FB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 140pk, 103kw - H9FD, H9FB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 3.2 TDCi RWD - 3199ccm, 200pk, 147kw - SAFA, SAFB

  • Original part numbers

    8C1V-1125-AA FORD
    1543340 FORD

  • Manufacturer

    ATE

    When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.

    For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.

    ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
