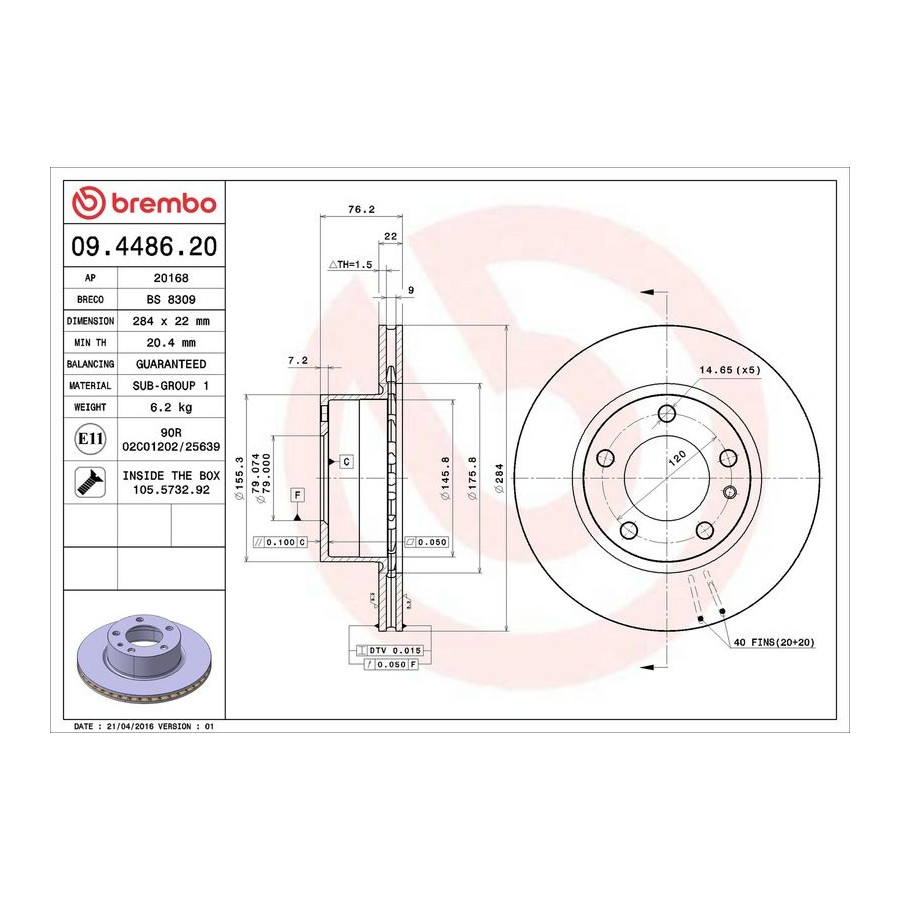

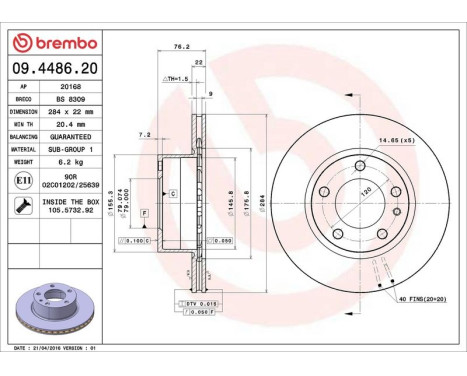

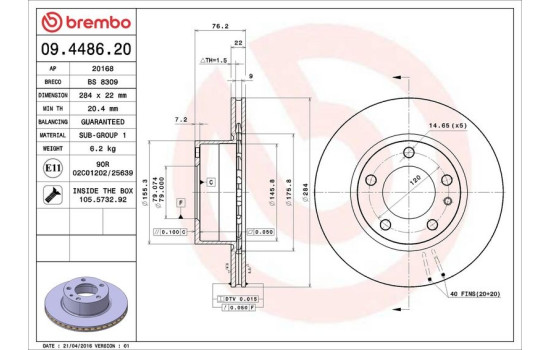

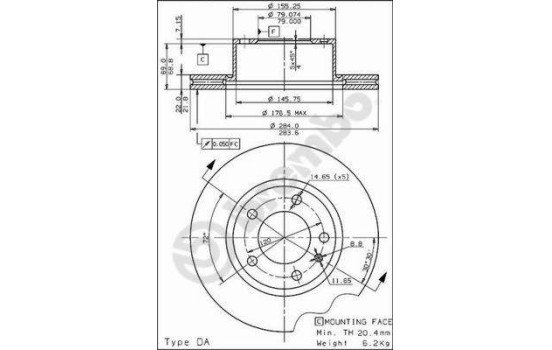

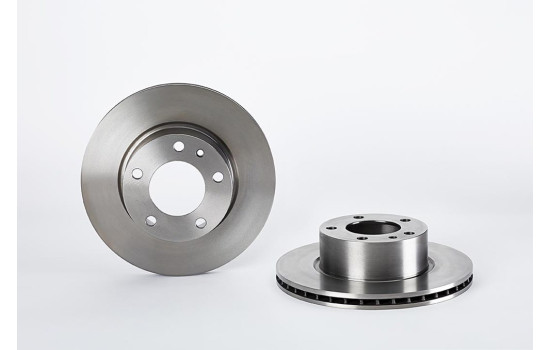

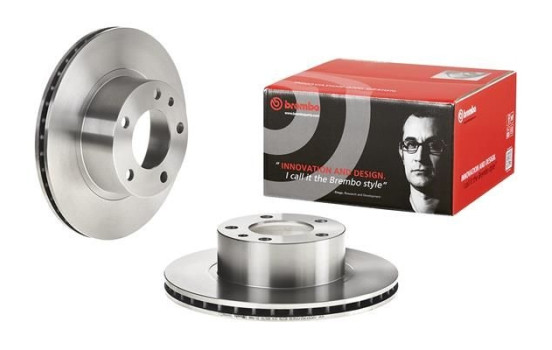

Brake Disc 09.4486.20 Brembo
Product number: 0163724
Manufacturer number: 09.4486.20
EAN: 8020584448625
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications
torque [Nm]: 8.5
Outer diameter [mm] 284 Brake Disc Type Internally Vented Internal ventilation Diameter [mm] 284 Surface No coating Number of Holes 5 Montage Front Brake pads Exclusive Centering Diameter [mm] 79 Torque [Nm] 120 Guarantee 2 years Height [mm] 76 Additional information With screws Brake disc thickness (mm) 22 Minimum thickness (mm) 20,4 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 15735 ATE 24.0122-0135.1 BORG & BECK BBD4362 BOSCH 0 986 478 043 BREMBO 09.4486.20 (this product) BREMSI CD6173V CAR HPD 123 CAR 142.123 DELPHI BG2212 EUROBRAKE 5815201513 FEBI BILSTEIN 04440 FERODO DDF173 FTE 9072424 FTE BS3201 GIRLING 6015651 JURID 561186J KAWE 6317 10 LPR B2101V MAXGEAR 19-2660SPORT MAXGEAR 19-2660 MAXTECH 873004 MEYLE 315 521 3004 Manufacturer Manufacturer number Price MINTEX MDC283 NK 201513 OPTIMAL BS-3170C PROTECHNIC PRD2197 QUINTON HAZELL BDC3201 REMSA 6317.10 ROADHOUSE 6317.10 ROTINGER RT 2424-GL T3 ROTINGER RT 2424-GL T5 ROTINGER RT 2424-GL T9 ROTINGER RT 2424-GL ROTINGER RT 2424 ROTINGER RT 2424-GL T6 STELLOX 6020-1513V-SX STELLOX 6020-1513VK-SX SWAG 20 90 4440 TEXTAR 92022300 TRUCKTEC AUTOMOTIVE 08.34.017 TRW DF1565 VAICO V20-80013 VALEO 186122 WOKING D6317.10 -
Applicability
BMW 5 5 (E28) | 05.1981-12.1987 518 - 1766ccm, 90pk, 66kw - M10 B18 (184VC), M10 B18 (184VD) 5 (E28) | 05.1981-12.1987 518 i - 1766ccm, 105pk, 77kw - M10 B18 (184EB) 5 (E28) | 05.1981-12.1987 520 i - 1990ccm, 125pk, 92kw - M20 B20 (206EB), M20 B20 (206EA), M20 B20 (206EC), M20 B20 (206EZ) 5 (E28) | 05.1981-12.1987 520 i - 1990ccm, 129pk, 95kw - M20 B20 (206KA) 5 (E28) | 05.1981-12.1987 524 d - 2443ccm, 86pk, 63kw - M21 D24 (246DA) 5 (E28) | 05.1981-12.1987 524 td - 2443ccm, 115pk, 85kw - M21 D24 (246TA) 5 (E28) | 05.1981-12.1987 525 e - 2693ccm, 125pk, 92kw - M20 B27 (276EA) 5 (E28) | 05.1981-12.1987 525 e - 2693ccm, 122pk, 90kw - M20 B27 (276KA), M20 B27 (276KB) 5 (E28) | 05.1981-12.1987 525 e - 2693ccm, 129pk, 95kw - M20 B27 (276KB), M20 B27 (276EB) 5 (E28) | 05.1981-12.1987 525 i - 2494ccm, 150pk, 110kw - M30 B25 (256EA) 5 (E28) | 05.1981-12.1987 528 i - 2788ccm, 184pk, 135kw - M30 B28 (286EA) -
Original part numbers
34111151655 BMW 34111151656 BMW 34111163135 BMW 34111163136 BMW 3411151656 BMW -
Manufacturer
Brembo is the undisputed leader in the production and development of brake parts for the automotive industry. Brembo stands for the best braking performance for your car. Brembo has built up enormous expertise to be able to develop and produce a wide variety of products. From brake pads and discs for over 96% of all passenger cars in Europe, America and Asia, to extreme braking systems used in Supercars and Formula 1.
The technical innovation and durability of Brembo brake pads and brake discs is guaranteed because all important processes such as design, production and testing are under one roof. As a result, Brembo brake pads and brake discs always deliver the best performance, time after time.
Brembo sport brake discs are cast, finished and tested by Brembo itself, so that exceptional quality can be guaranteed. Every newly produced Brembo brake disc thus has the same exceptional quality as the previous one.
Brembo brake parts distinguish themselves on the following points:
• Coverage of over 96% of the worldwide passenger car fleet
• Top quality
• Sportsmanship
• Better braking performance than other manufacturers
• Number 1 braking system used in sports cars and Formula 1
We currently have the following Brembo products in our range:
• Brake pads
• Brake discs
• Brake Shoe Set
• Wear Indicators
• Brake drums
• Calipers
• Brake hoses
• Wheel brake cylinders
• Master cylinders
• Penetrating Oil & Lubricants
• Brake power distributors
Is sportsmanship important to you? Then order Brembo brake parts!
-
