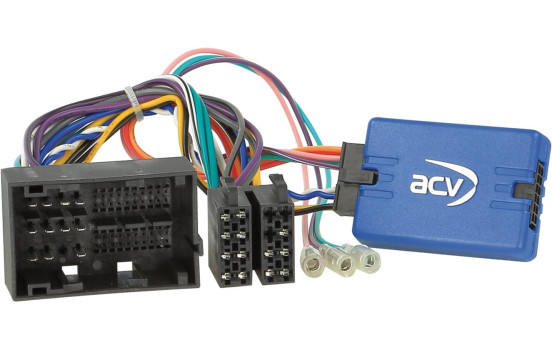

SWI Peugeot Boxer (250) - Fiat Ducato - Citroen Jumper 2015->

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.

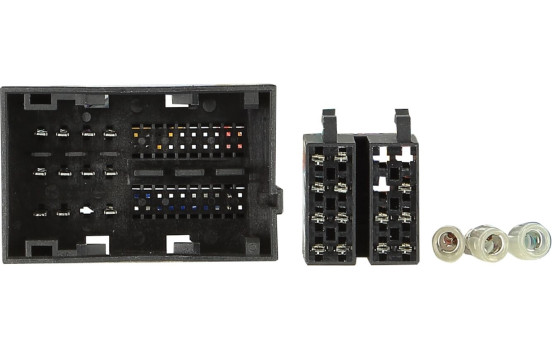

Compare the illustrated connector of the adapter with
that in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Steering wheel control adapter

Remark:

CAN bus

Connection: 52 pin Fiat connector

Vehicles with Continental 250VP1 / 250VP2 OEM unit
Vehicles with UConnect OEM unit
Vehicles with Daiichi OEM unit*

Vehicles with trip odometer error display after installation > Dip switch position under the printed circuit board:

Adjust dip switch position voltage free

Dip switch 1 on / Dip switch 2 off / Dip switch 3 on or off
Dip switch 1 off / Dip switch 2 on / Dip switch 3 on or off

Dip switch 1 on > 250VP1 OEM HU
Dip switch 2 on > 250VP2 OEM HU
Dipswitch 3 on > Blue&Me OEM function
Dipswitch 4 on > Pioneer

Dip switch 1 off / Dip switch 2 off / Dip switch 3 on > Daiichi OEM device

After switching > Set CAN bus rest

Vehicles with persistent error display and other software package not compatible

On-board computer vehicle settings not supported**
High beam assistant not supported
Driver assistance systems not supported
Date/time setting not supported**

Vehicles with OEM Rear View Camera OEM Connector Assignment:
red: Pin 31 Video+
white: pin 32 Video -
black: Pin 33 Shielding

Suitable for the following vehicles:

Lemon
Citroën Jumper (250) 05/2014 - 2023
Citroën Relay (250) 05/2014 - 2023

Peugeot
Peugeot Boxer (Y) 05/2014 - 2023

The following signals are provided:

Re-imported vehicles or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal

Load capacity of total outputs: 100 mA max.

Current requirement greater than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relay coil resistance 150 Ohm min.

Steering wheel remote control

*Daiichi Wiring Harness > Radio Slot Driver Side OEM Connector
**Info adapter for on-board computer settings > Article: 43uft01

Connection cable for the following radio manufacturers:

LFB cable 42s/acv > Alpine connection: 42ctalpinelead
LFB cable 42s/acv > Parrot 4 pin: 42ctasteroidlead
LFB cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
LFB cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
LFB cable 42s/acv > Clarion connection: 42ctclarionlead
LFB cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
LFB cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
LFB cable 42s/acv > Multilead various devices: 42ctmultilead
LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
LFB cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
LFB cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
LFB cable 42s/acv > Pioneer AVH/DMH/SPH 2022> connection loose: 42ctpioneerlead2
LFB cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
LFB cable 42s/acv > Blaupunkt/Kenwood/Sony connection: 42ctsonylead
LFB cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead

Suitable for:
Peugeot Boxer 2015-2020
Fiat Ducato 2015-2020
Citroën Jumper 2015-2020

---

Guarantee

2 years
