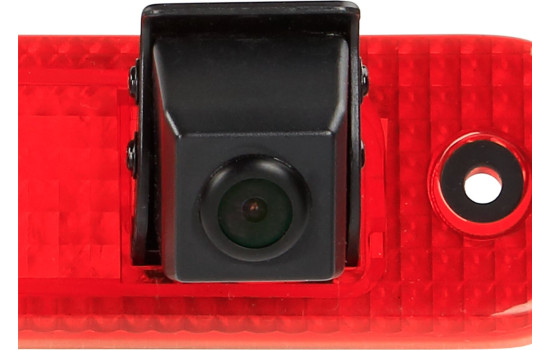

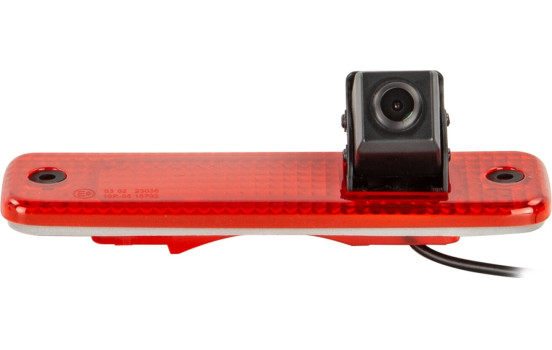

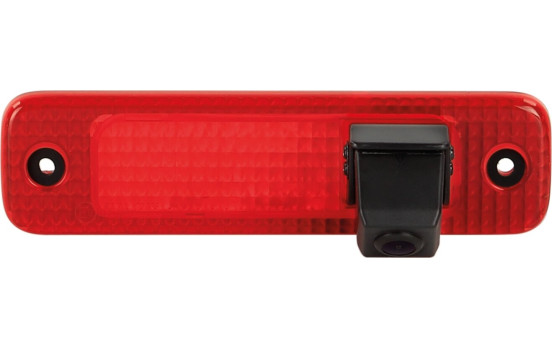

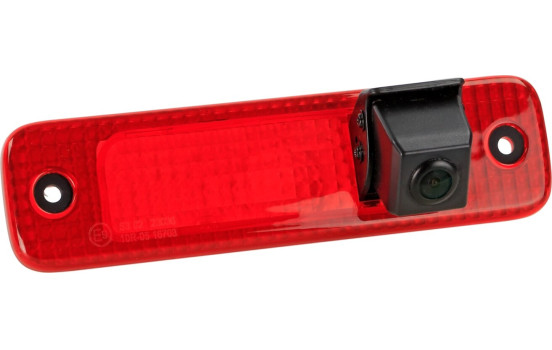

Reversing Camera Ford Transit 2006-2014

Reversing Camera Ford Transit 2006-2014 Reversing Camera Ford Transit 2006-2014, Image 2 Reversing Camera Ford Transit 2006-2014, Image 3 Reversing Camera Ford Transit 2006-2014, Image 4 Reversing Camera Ford Transit 2006-2014, Image 5 Reversing Camera Ford Transit 2006-2014, Image 6
  • Reversing Camera Ford Transit 2006-2014
  • Reversing Camera Ford Transit 2006-2014, Thumbnail 2
  • Reversing Camera Ford Transit 2006-2014, Thumbnail 3
  • Reversing Camera Ford Transit 2006-2014, Thumbnail 4
  • Reversing Camera Ford Transit 2006-2014, Thumbnail 5
  • Reversing Camera Ford Transit 2006-2014, Thumbnail 6

Product number: 1688382

Manufacturer number: 771000-6075

EAN: 4026724341997

€ 147,99

Incl. VAT
View product specifications
In stock
Delivery Day after tomorrow
Secure payment
  • Free 30 days exchanges
  • Quality car parts
  • EU Delivery: 2-3 days
  • Ask our experts for advice

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

  • Specifications

    Rear view camera

    Ford Transit New Line (FDF6) 07/2006 - 02/2008
    Ford Transit Station Wagon (FDE6) 07/2006 - 03/2014
    Ford Transit Tourneo (FSE6) 07/2006 - 03/2014
    Ford Transit Euroline (FZE6) 07/2006 - 03/2014
    Ford Transit Nugget (FBE6) 07/2006 - 03/2014

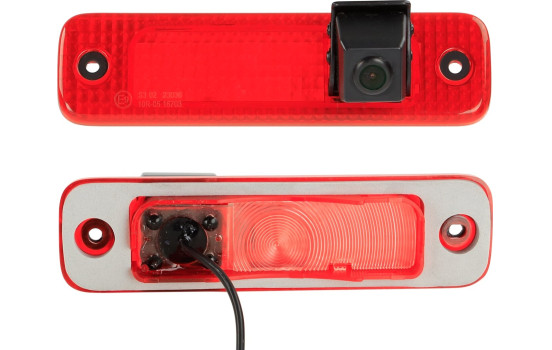

    To replace the OEM 3rd brake light
    With orientation lines, adjustable viewing angle

    Remark:

    All ACV cameras are suitable for connection of +12V continuous operation

    Connection:
    red +12V switched load stable fused
    black ground/GND body direct

    Camera product features:

    Design: plastic
    Color: black/red
    Extras: : Orientation lines via jumper, adjustable viewing angle
    Sensor type: 1/3" CMOS
    Image system: NTSC color
    Effective pixels: 976 x 592
    Lens: 2.1mm
    Min.lux: 0.1 lux
    Resolution: 600 TV lines
    Viewing angle: horizontal 115° vertical 75
    Dust and water resistant: IP68
    Connection: 4 pin mini plug(f) 5.2 mm
    Supply voltage: 12Volt DC + 10
    Current consumption: 100mA max.
    Temperature range: -20°C - 70°C
    Dimensions: see OEM brake light
    Exterior: 157.5mm x 40mm
    Installation dimensions: 105.5 mm
    Hole spacing: 131 mm
    Diameter holes: Ø 5.3 mm

    Connection cable to camera:

    4-pole mini plug(f) 5.2 mm with 1 jumper

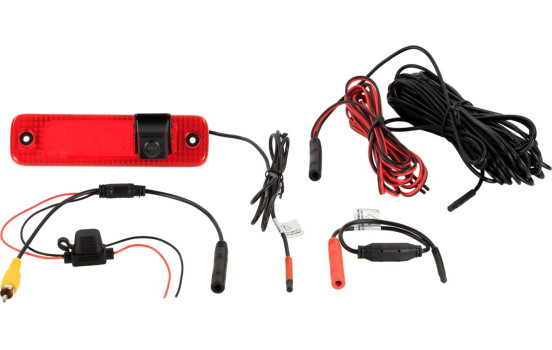

    Cable set:

    10 meter extension (m/f) incl. 300 cm power cable for connection to the reversing light and feed-through to the connection cable on the terminal unit

    4-pole mini plug (f) 10 mm and plug (m) 5.2 mm

    20 cm power cable with fuse and cinch video connection cable

    Installation accessories:

    Camera connection to interfaces NO relay electronic 2V-12V/1.5A max: 40-AD-REMOTE
    Camera connection to reversing light Reversing camera Voltage stabilizer Reversing signal: 771000-6100

    Optional accessories:

    Camera cable extension for acv camera 5m: 771000-6305
    Camera cable extension for acv camera 10m: 771000-6310
    Camera cable extension for acv camera 15m: 771000-6315

    Suitable for:
    Ford Transit 2006-2014
    applicationReady
    Guarantee2 years

  • Applicability

    FORD
    TRANSIT Bus
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 125pk, 92kw - CYFA, CYFB, CYFC, CYFD
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 100pk, 74kw - DRFA, DRFB, DRFC, DRFD, DRFE
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 85pk, 63kw - P8FA, P8FB
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 140pk, 103kw - PGFA, PGFB, UHFA, UHFB, UHFC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 110pk, 81kw - QVFA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 130pk, 96kw - QWFA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 115pk, 85kw - SRFA, SRFB, SRFC, SRFD, SRFE
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - CYRA
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRRA, DRRB, DRRC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 135pk, 100kw - USRA, USRB
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 140pk, 103kw - H9FD
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 2.4 TDCi 4x4 - 2402ccm, 140pk, 103kw - H9FB
    TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) | 04.2006-12.2014 3.2 TDCi - 3199ccm, 200pk, 147kw - SAFA, SAFB
    TRANSIT Platform/Chassis
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi - 2198ccm, 125pk, 92kw - CYFA, CYFB, CYFC, CYFD
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi - 2198ccm, 100pk, 74kw - DRFA, DRFB, DRFC, DRFD, DRFE
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi - 2198ccm, 85pk, 63kw - P8FA, P8FB
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi - 2198ccm, 140pk, 103kw - PGFA, PGFB, UHFA, UHFB, UHFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi - 2198ccm, 110pk, 81kw - QVFA
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi - 2198ccm, 130pk, 96kw - QWFA
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi - 2198ccm, 115pk, 85kw - SRFA, SRFB, SRFC, SRFD, SRFE
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CYRB, CYRC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CVRA, CVRB, CVRC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - CYRA
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRRA, DRRB, DRRC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.3 16V CNG RWD - 2261ccm, 136pk, 100kw - GZFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.3 16V LPG RWD - 2261ccm, 145pk, 107kw - GZFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.3 16V RWD - 2261ccm, 145pk, 107kw - GZFA, GZFB, GZFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi 4x4 - 2402ccm, 140pk, 103kw - H9FB
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 140pk, 103kw - H9FD, H9FB
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 2.4 TDCi RWD - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) | 04.2006-08.2014 3.2 TDCi RWD - 3199ccm, 200pk, 147kw - SAFA, SAFB
    TRANSIT TOURNEO
    TRANSIT TOURNEO Bus | 07.2006-08.2014 2.2 - 2198ccm, 125pk, 92kw - CYFA, CYFB, CYFC, CYFD
    TRANSIT TOURNEO Bus | 07.2006-08.2014 2.2 TDCi - 2198ccm, 140pk, 103kw - PGFA, PGFB, UHFA, UHFB, UHFC
    TRANSIT TOURNEO Bus | 07.2006-08.2014 2.2 TDCi - 2198ccm, 110pk, 81kw - QVFA
    TRANSIT TOURNEO Bus | 07.2006-08.2014 2.2 TDCi - 2198ccm, 131pk, 96kw - QWFA
    TRANSIT TOURNEO Bus | 07.2006-08.2014 2.2 TDCi - 2198ccm, 115pk, 85kw - SRFA, SRFB, SRFC, SRFD, SRFE
    TRANSIT Van
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 125pk, 92kw - CYFA, CYFB, CYFC, CYFD
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 100pk, 74kw - DRFA, DRFB, DRFC, DRFD, DRFE
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 85pk, 63kw - P8FA, P8FB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 140pk, 103kw - PGFA, PGFB, UHFA, UHFB, UHFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 110pk, 81kw - QVFA
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 130pk, 96kw - QWFA
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi - 2198ccm, 115pk, 85kw - SRFA, SRFB, SRFC, SRFD, SRFE
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CYRB, CYRC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CVRA, CVRB, CVRC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - CYRA
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRRA, DRRB, DRRC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.2 TDCi RWD - 2198ccm, 136pk, 100kw - USRA, USRB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.3 16V CNG RWD - 2261ccm, 136pk, 100kw - GZFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.3 16V LPG RWD - 2261ccm, 145pk, 107kw - GZFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.3 16V RWD - 2261ccm, 145pk, 107kw - GZFA, GZFB, GZFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi 4x4 - 2402ccm, 140pk, 103kw - H9FB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 140pk, 103kw - H9FD, H9FB
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 115pk, 85kw - JXFA, JXFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 2.4 TDCi RWD - 2402ccm, 100pk, 74kw - PHFA, PHFC
    TRANSIT Van (FA_ _) | 04.2006-12.2014 3.2 TDCi RWD - 3199ccm, 200pk, 147kw - SAFA, SAFB
