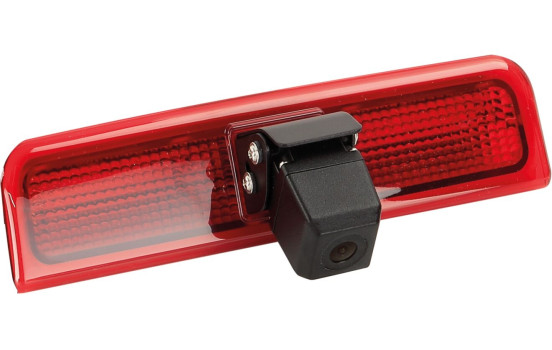

Reversing camera 3rd brake light VW Caddy 2003-2015 with orientation lines, night vision function

Reversing camera VW Caddy 2003-2015 to replace the 3rd brake light with orientation lines, night vision function and 20 ° adjustable viewing angle

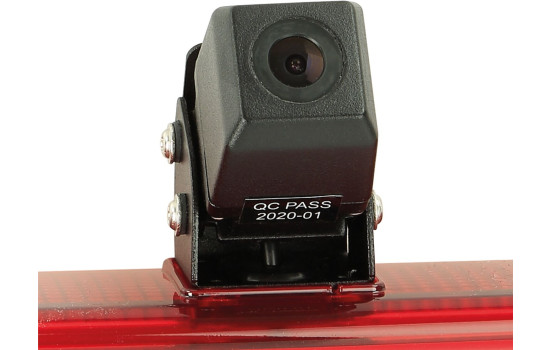

Camera Product Features:

• plastic
• Color: black/red
• Extras: orientation lines and night vision function, viewing angle adjustable by 20°
• Sensor type: 1/3" CMOS
• Image system: NTSC color
• Effective pixels: 762 x 504
• Lens: 1.9mm / F 2.0
• Min.Lux: 0 lux with night vision function
• Resolution: 480 TV lines
• Viewing angle: 170 °
• Viewing angle: horizontal 150° vertical 90° + 5°
• Protected against dust and water: IP67
• Connection: 4-pin mini plug 5.2 mm
• Supply voltage: 12Volt + 10%
• Power consumption: 150mA with night vision function enabled
• Operating temperature range: -30°C - 75°C
• Storage temperature: -40 ° C - 80 ° C

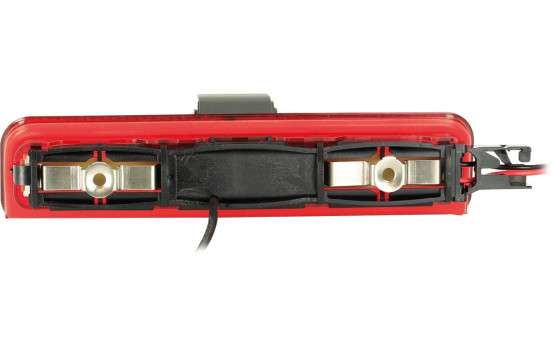

• Dimensions: see OEM brake light
• Connection cable on the camera:
• 1 meter cable with 4-pin mini plug 5.2 mm

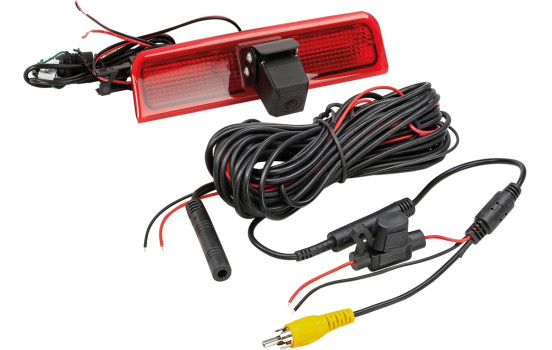

Cable set:
1 meter cable with 4-pin mini plug incl. 1 jumper
6.5 meter extension including 3 meter power cable for connection to the reversing light
and through wiring up to the connection cable on the end device
4-pin mini jack 10mm and plug 5.2mm
0.2 meter power cable including fuse and video connection cable (RCA)

Optional accessories:
771000-6305 extension 5 meters
771000-6310 extension 10 meters
771000-6315 extension 15 meters

Suitable for:
Volkswagen Caddy 2003-2015

---

application	Ready
Guarantee	2 years
