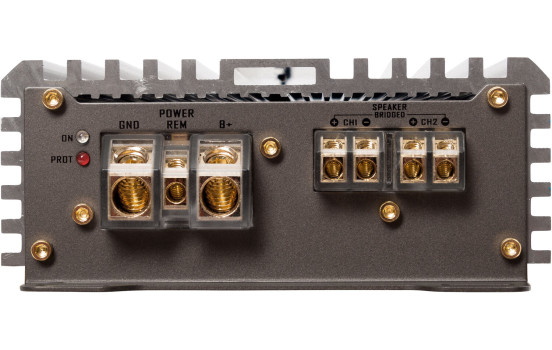

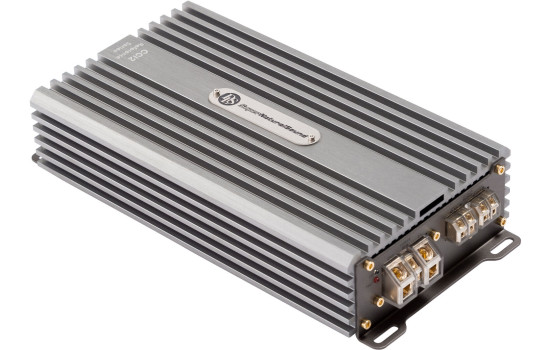

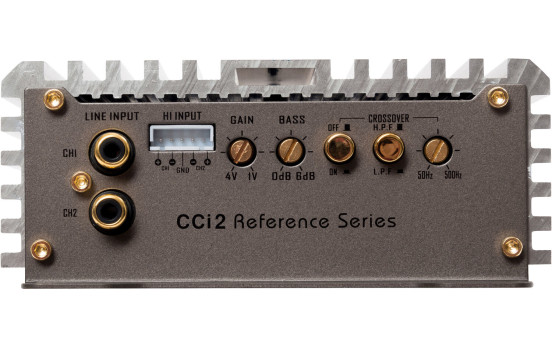

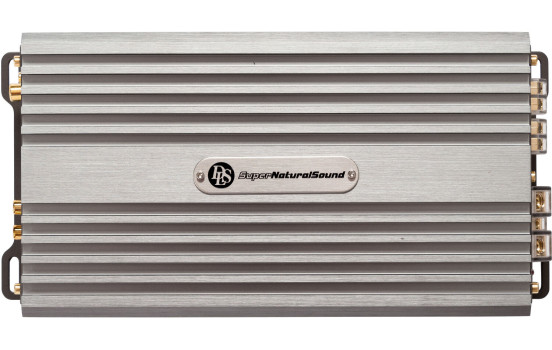

DLS 2-channel amplifier CCi2

Reference Series - CCi2
"Probably one of the best SQ amplifiers in the world in terms of price/performance".

Two-channel audiophile amplifier for high demands, tuned by Gordon Taylor. The prized DLS sound is ensured by linear regulators feeding the preamp and a high bias drive circuit.
Combined with top quality output devices, this makes the DLS amplifiers simply sonically superior to the competition.
Sparkling details with warm mids and an industry-leading S/N ratio of over 110 dBA - the amplifier is dead quiet!

When used for system integration, the CCi2 includes a DLS High Level converter with auto start for upgrading OEM radios and a wide input level.
Another useful feature of the High Level input is that a low-level output to additional amplifiers can be obtained via the RCA input connectors.

Number of channels - 2
Reinforcement class - AB
Mono bridge mode 4 ohm -340 Watts
Output power into 2 ohms -2 x 170 Watts
Output power into 4 ohms - 2 x 110 Watts
Damping factor >150
THD at 5W, 20 Hz - 20 kHz. <0.25%
S/N ratio, A-weighted >110 dB
Frequency range 10 Hz - 50 kHz
Input sensitivity 1 - 4 Volts
Input impedance 6 kohm
Input impedance, high level 45 ohms
High pass filter 50 - 500Hz
Low-pass filter 50 - 500Hz
High level input with automatic start Yes
Power consumption (idle) 0.5 A
Power consumption (max) 43 A
Integrated fan
Dimensions (W x D x H) 129 x 260 x 51 mm (5.1? x 10.2? x 2?)
Weight 1.87 kg

Suitable for:
2-Channel

---

Output	340 watts
Number of channels	2
Guarantee	2 years
