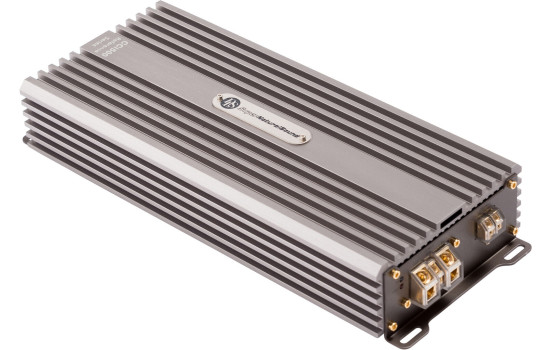

DLS 1-channel amplifier CCi500

Reference Series - CCi500
The CCi series amplifiers, designed and tuned by Gordon Taylor in collaboration with DLS Sweden, all share the unique
intelligent cooling of the small housing.

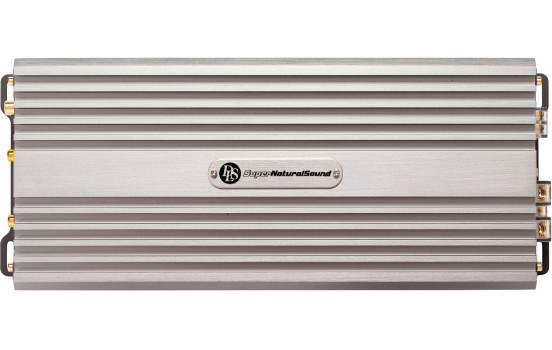

The clever machining of the heat sink gives more heat dissipation fins on the outside and one on the inside
large area of small fins that capture the heat of the air flowing through the circuit board and release it through thin slots in the side panels.

The CCi series produces more power and less heat - you hear it and you feel it!

The advanced Class D circuitry in the CCi500 delivers high, clean power to perfectly control the cone in each subwoofer.
For perfect system integration, the CCi series includes the proven DLS High level converter with Auto start for upgrading OEM radios and a wide input level.


Number of channels - 1
Amplifier class - D
Output power into 1 ohm - 550 Watts
Output power into 2 ohms - 370 Watts
Output power into 4 ohms - 200 Watts
Damping factor >140
S/N ratio, A-weighted >92 dB
Frequency range 10 Hz - 2500 Hz

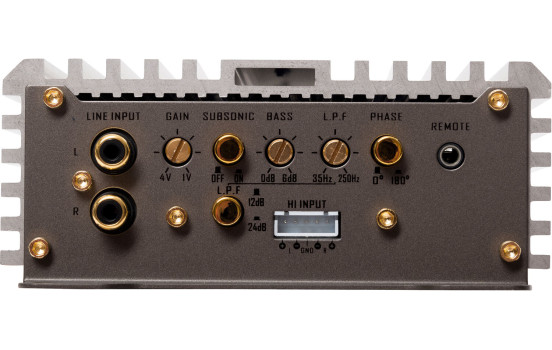

Input sensitivity 1 - 4 Volts
Input impedance 22 kohm
Input impedance, high level 45 ohms
Subsonic filter 30 Hz, ON/OFF
Low-pass filter 35 - 250 Hz, slope 12 or 24 dB
Large bass filter Bass boost 0- +6dB variable
Phase control for subwoofers 0 or 180 degrees switch

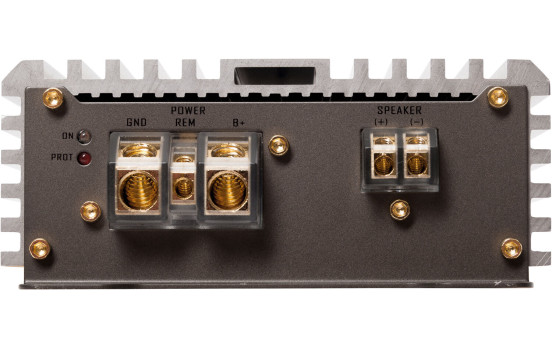

High level input with automatic start Yes
Power consumption (idle) 0.8 A
Power consumption (max) 80 A
Dimensions (W x D x H) 129 x 320 x 51 mm / 5.1 x 12.6 x 2?
Weight 2.4 kg

Suitable for:
1-Channel

---

Output	550 watt
Number of channels	1
Guarantee	2 years
