ACV

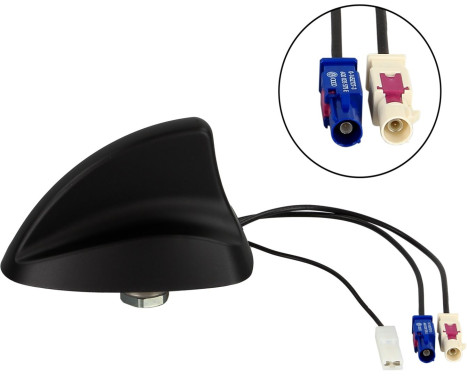

Roof antenna AM/FM GNSS (GPS/GLONASS) Shark II

Universally applicable

Roof antenna AM/FM GNSS (GPS/GLONASS) Shark II

Product number: 1684579

Manufacturer number: 15-7677825

EAN: 4026724672701

€ 110,99

Incl. VAT
View product specifications
In stock
Delivery Day after tomorrow
Secure payment
  • Free 30 days exchanges
  • Quality car parts
  • EU Delivery: 2-3 days
  • Ask our experts for advice

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

  • Specifications

    Roof antenna AM/FM GNSS (GPS/GLONASS/Galileo/Navstar)
    Design Shark II
    NB:
    NEW ITEM FOR 15-7727055
    CONNECTION AND ACCESSORIES CHANGED
    OPTIONAL ACCESSORIES LISTED BELOW:
    Receipts:
    AM/FM
    GNS

    Assembly:
    Installation location: rear roof
    Bore round: 19 mm
    Square hole: 15mm x 15mm
    Tightening torque: 6.5 nm +/- 20%

    Dimensions:
    Antenna base: L = 117 mm / W = 76 mm / H = 62 mm

    Connection:
    AM/FM: Fakra B(f) white RG174 / 250 mm
    GNSS: Fakra C(f) blue RG174/350mm
    External power supply: flat plug 6.3 mm

    Frequency range:
    AM: 150 kHz - 1710 kHz
    FM: 87.5MHz-108MHz
    GNSS: 1559 MHz - 1065 MHz

    Advantage:
    GNSS: 28dBi

    Power supply:
    AM/FM: 12V external/12V phantom power
    GNNS: 3V - 5V phantom power

    Energy consumption:
    AM/FM: 80mA max
    GNSS: 31mA max
    Impedance:
    AM/FM: 50 ohm
    GNSS: 50 ohm

    standing wave ratio:
    GNSS: 1.7:1

    sound rating:
    FM: 3.5db
    GNSS: 1.4db

    Polarization:
    FM: Linear-Vertical
    GNSS: Right-handed circular RHCP

    Options:
    AM/FM:
    Antenna cable extension Fakra(f) > Fakra(f) 500cm: 15-7581195
    Antenna adapter Fakra(m) > DIN(m) passive: 1524-01
    Antenna adapter Fakra(m) > ISO(m) passive: 1524-02
    Antenna adapter Fakra(m) > DIN(m) 12V Phantom: 1524-03
    Antenna adapter Fakra(m) > ISO(m) 12V Phantom: 1524-04
    GPS:
    Antenna cable extension Fakra(f) > Fakra(f) 500cm: 15-7581195

    Suitable for:
    AM FM GNSS
    Universal
    MaterialPlastic
    FootIncluding
    Length6 cm
    applicationSharkfin
    CableIncluding
    Guarantee2 years

  • Applicability

    Universally applicable

  • Manufacturer

    ACV

  • Delivery time

    Expected delivery date:

    Day after tomorrow
