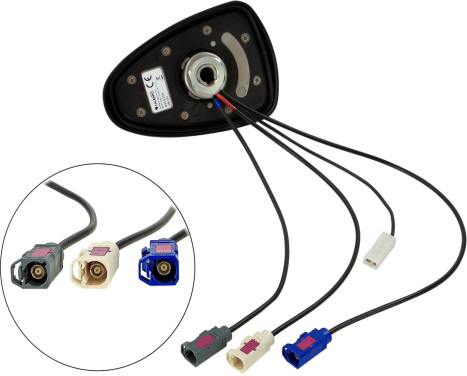

Roof antenna AM/FM DAB/DAB+ GNSS (GPS/GLONASS) Shark II

Roof antenna AM/FM DAB/DAB+ GNSS (GPS/GLONASS/Galileo/Navstar)

Design Shark II
NB:
NEW ITEM FOR 15-7727160
CONNECTION AND ACCESSORIES CHANGED
OPTIONAL ACCESSORIES LISTED BELOW
Types of care:
AM/FM
DAB/DAB+
GNS

Assembly:
Installation location: rear roof
Bore round: 19 mm
Square hole: 15mm x 15mm
Tightening torque: 6.5 nm +/- 20%

Dimensions:
Antenna base: L = 117 mm / W = 76 mm / H = 62 mm

Connection:
AM/FM: Fakra B(f) white RG174 / 250 mm
DAB/DAB+: Fakra G(f) gray RG174 / 200 mm
GNSS: Fakra C(f) blue RG174/350mm
External power supply: flat plug 6.3 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87.5MHz-108MHz
DAB/DAB+: 174MHz - 240MHz
GNSS: 1559 MHz - 1065 MHz

Extra:
DAB/DAB+: 2dBi
GNSS: 28dBi

Power supply:
AM/FM: 12V external/12V phantom power
DAB: 12V external / 12V phantom power
GNNS: 3V - 5V phantom power

Energy consumption:
AM/FM: 80mA max
DAB/DAB+: 33mA max
GNSS: 31mA max
Impedance:
AM/FM: 50 ohm
DAB/DAB+: 50 ohm
GNSS: 50 ohm

Wave ratio:
DAB/DAB+: <3:1
GNSS: 1.7:1

Sound rating:
FM: 3.5db
DAB/DAB+: 2db
GNSS: 1.4db

Polarization:
FM: Linear-Vertical
DAB/DAB+: Linear-Vertical
GNSS: Right-handed circular RHCP

Options:
AM/FM:
Antenna cable extension Fakra(f) > Fakra(f) 500cm: 15-7581195
Antenna adapter Fakra(m) > DIN(m) passive: 1524-01
Antenna adapter Fakra(m) > ISO(m) passive: 1524-02
Antenna adapter Fakra(m) > DIN(m) 12V Phantom: 1524-03
Antenna adapter Fakra(m) > ISO(m) 12V Phantom: 1524-04
DAB/DAB+:
Antenna cable extension Fakra(m) > Fakra(f) 500cm: 1524-500
Antenna adapter Fakra(m) > SMB(f) 90° 20cm: 1502-54
Antenna adapter SMB(m) > SMA(m): 1502-29
GPS:
Antenna cable extension Fakra(m) > Fakra(f) 500cm: 1524-500

Suitable for:
AM FM DAB DAB+ GNSS
Universal

---

Material	Plastic
Foot	Including
Length	6 cm
application	Sharkfin
Cable	Including
Guarantee	2 years
