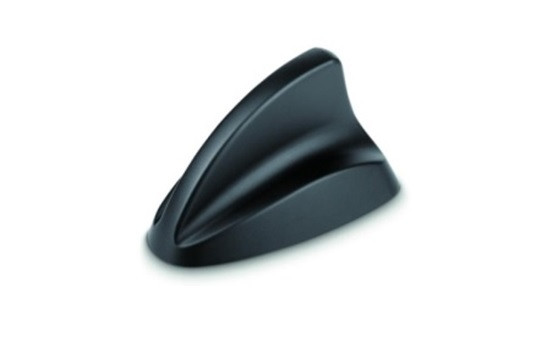

Opti - Shark fin antenna AM / FM DAB / DAB + GNSS (GPS)

Universally applicable

Opti - Shark fin antenna AM / FM DAB / DAB + GNSS (GPS) Opti - Shark fin antenna AM / FM DAB / DAB + GNSS (GPS), Image 2
  • Opti - Shark fin antenna AM / FM DAB / DAB + GNSS (GPS)
  • Opti - Shark fin antenna AM / FM DAB / DAB + GNSS (GPS), Thumbnail 2

Product number: 1772123

Manufacturer number: 153000-30X

€ 89,99

Incl. VAT
View product specifications
In stock
Delivery Day after tomorrow
Secure payment
  • Free 30 days exchanges
  • Quality car parts
  • EU Delivery: 2-3 days
  • Ask our experts for advice

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

  • Specifications

    Roof antenna AM / FM DAB / DAB + GNSS (GPS)

    Shark type, IP68
    Reception:
    AM/FM
    DAB / DAB +
    GNNS

    Assembly:
    Installation location: rear roof

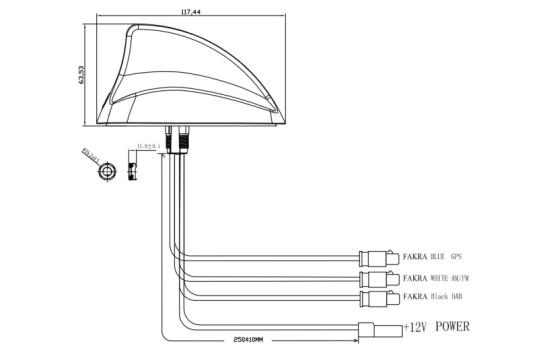

    Dimensions:
    Antenna base: L = 117 mm / W = 76 mm / H = 62 mm

    Connection:
    AM / FM: Fakra B (m) white RG174 / 200 mm
    DAB/DAB+: Fakra A (m) black RG174 / 200 mm
    GNSS: Fakra C (m) blue RG174 / 200 mm
    External power supply: 6.3 mm flat plug

    Frequency range:
    AM: 150 kHz - 1710 kHz
    FM: 87.5 MHz - 108 MHz
    DAB/DAB+: 174 MHz - 240 MHz
    GNSS: 1559 MHz - 1065 MHz

    Earn:
    DAB/DAB+: 2dBi
    GNSS: 28dBi

    Power supply:
    AM/FM: 12V external / 12V phantom power
    DAB: 12V external / 12V phantom power
    GNNS: 3V - 5V phantom power
    Optional:
    AM/FM:
    Antenna cable extension Fakra (f)> Fakra (f) 500cm: 15-7581195
    Antenna adapter Fakra (m)> DIN (m) passive: 1524-01
    Antenna adapter Fakra (m) > ISO (m) passive: 1524-02
    Antenna adapter Fakra (m)> DIN (m) 12V Phantom: 1524-03
    Antenna adapter Fakra (m)> ISO (m) 12V phantom power: 1524-04
    DAB/DAB+:
    Antenna cable extension Fakra (f)> SMB (f) 500cm: 15-7581012
    Antenna adapter SMB (m) > SMA (m): 1502-29
    GNSS:
    Antenna cable extension Fakra (f)> Fakra (f) 500cm: 15-7581195

    Suitable for:
    AM
    FM
    DAB DAB+
    Universal Various models Various years
    MaterialPlastic
    ColourBlack
    FootIncluding
    applicationSharkfin
    CableExclusive
    Guarantee2 years

  • Applicability

    Universally applicable

  • Manufacturer

    ACV

  • Delivery time

    Expected delivery date:

    Day after tomorrow

  • Questions?

    • 1772123. Opti - Shark fin antenna AM / FM DAB / DAB + GNSS (GPS)

    • In order to help you with your request, we require extra information about your vehicle. We would like to know: brand / model / type, year of manufacture, coach work, fuel, automatic transmission or manual, number of doors, VIN.
