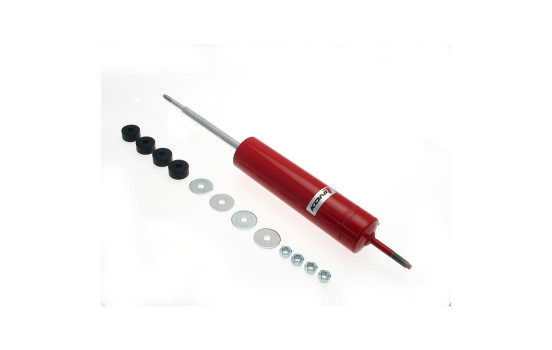

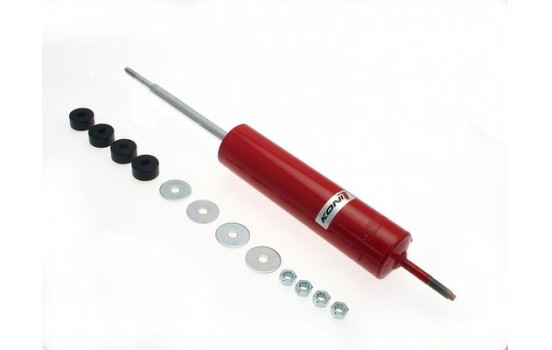

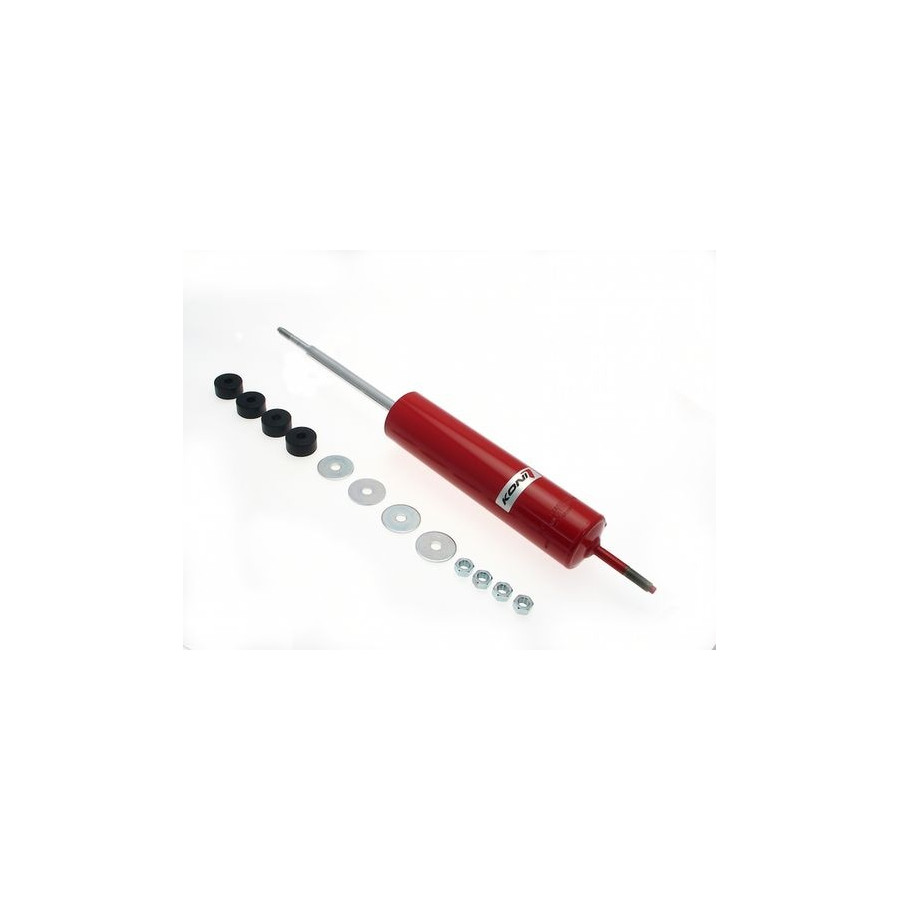

Shock Absorber HT RAID 90-5370SP1 Koni
Product number: 0505785
Manufacturer number: 90-5370SP1
EAN: 8712167162867
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications
KONI RAID SHOCK ABSORBERS for driving under difficult terrain conditions.
Specially developed for driving in difficult terrain conditions. Developed with endurance tests in the outbacks of Australia and the Sahara.
KONI RAID technology:
- Hard chromed 18 mm rod
- Large oil reservoir for optimum cooling (damper diameter 70 mm)
- Large pistons (42 mm)
- Special heat-resistant Viton seals
- Teflon piston belt and guide
- Reinforced fixings with special HBU (Heat Built Up) rubber components for a long service life
- Unique hydraulic rebound stop (outward stroke limitation).
- No ash trap limit required
- Suitable for raised vehicles up to 50 mm
- 2 year warranty
Shock Absorber Type Oil Pressure application Front Colour Red Quantity 1 Adjustable Adjustable Shock Absorber System Double End Pipe Shock Absorber Design Telescopic Shock Absorber Guarantee 2 years Number in packaging 1 Pieces needed 2 price Per Unit Shock Absorber Mounting Type Top pin Bottom Pin -
Applicability
NISSAN PATROL GR PATROL GR (Y60, GR) | 02.1988-02.1998 2.8 TD - 2826ccm, 111pk, 82kw - RD28T PATROL GR (Y60, GR) | 02.1988-02.1998 2.8 TD (Y60A) - 2826ccm, 116pk, 85kw - RD28T PATROL GR (Y60, GR) | 02.1988-02.1998 3.0 4WD - 2962ccm, 136pk, 100kw - RB30S PATROL GR (Y60, GR) | 02.1988-02.1998 4.2 Cat - 4169ccm, 165pk, 121kw - TB42E PATROL GR (Y60, GR) | 02.1988-02.1998 4.2 D (CRGY60, KY60, KRY60, WRGY60) - 4169ccm, 116pk, 85kw - TD42 PATROL GR (Y60, GR) | 02.1988-02.1998 4.2 D 4x4 (CRGY60, VRY60, VRGY60, WRY60, WRGY60) - 4169ccm, 125pk, 92kw - TD42 PATROL GR Mk II Wagon (Y61) | 06.1997-06.2001 2.7 TD - 2664ccm, 99pk, 73kw - TD27T PATROL GR Mk II Wagon (Y61) | 06.1997-06.2001 2.8 TD - 2826ccm, 129pk, 95kw - RD28Ti PATROL GR Mk II Wagon (Y61) | 06.1997-06.2001 2.8 TDiC (Y61) - 2826ccm, 131pk, 96kw - RD28Ti PATROL GR Mk II Wagon (Y61) | 06.1997-06.2001 3.0 DTi - 2953ccm, 158pk, 116kw - ZD30DDTi PATROL GR Mk II Wagon (Y61) | 06.1997-06.2001 3.0 DTi - 2953ccm, 160pk, 118kw - ZD30DDTi PATROL GR Mk II Wagon (Y61) | 06.1997-06.2001 4.8 - 4759ccm, 245pk, 180kw - TB48DE -
Original part numbers
4850029155 NISSAN 4850029185 NISSAN 56100VB725 NISSAN 5611021J00 NISSAN 5611021J25 NISSAN 5611022J00 NISSAN 5611022J25 NISSAN 5611039J00 NISSAN 5611039J25 NISSAN 56110G9800 NISSAN 56110VB000 NISSAN 56110VB010 NISSAN 56110VB025 NISSAN 56110VB026 NISSAN 56110VB700 NISSAN 56110VB725 NISSAN -
Manufacturer
Koni is a leading manufacturer of performance and adjustable shock absorbers worldwide. Koni shock absorbers are made of the highest quality raw materials and are manufactured to the highest standards.
Koni has many years of experience in motorsport and rally and offers a very wide range of shock absorber solutions. For example, Koni has introduced several innovations that are unprecedented to date.
At the moment we have a large range of Koni shock absorbers, springs and screw sets in our range:
- Koni Yellow shock absorbers
- Koni Orange STR.T shock absorbers
- Koni FSD shock absorbers
- Koni Red shock absorbers
- Koni Schroefsets
- Koni STR.T kitsKoni Yellow shock absorbers. Koni's most famous shock absorber and made for those who want to go seriously hard with their car. Koni Yellow dampers are fully adjustable, so they always fit perfectly with your wishes. Hard on the circuit, but a little more forgiven on the public road. The dampers can be reset in a few seconds and do not have to be disassembled. Koni Yellow dampers are suitable for 40mm reductions and offer significantly more intake damping than, for example, the STR.T dampers.
Koni Orange STR.T shock absorbers. These shock absorbers are Koni's entry-level dampers. Very attractively priced. Made for reduced feathers by using shortened piston rods. Also, the shock absorber is harder than the original, making it the ideal shock absorber to combine with a lowering springs set to improve the road position of your car. Suitable for reductions up to 40mm. Also available as kit with H & R progressive springs.
Koni FSD shock absorbers are the first shock absorbers that combine comfort with sportiness for the first time. This can be done by the Frequency Selective Damping. The intelligent damping system can adjust the damping force in a fraction of a second to the road surface and the driving style. And all without using electronics. These dampers give more comfort to a rough road surface, but are again harder when the road is more flat and you are making a sporty ride.
Koni Screw sets are fully adjustable in height and hardness of damping. This gives them the ultimate control in the driving characteristics of your car. Koni's Screw sets are specifically developed for your car, thus providing driving characteristics of unprecedented level. They are firmer and muted, giving them even more control under extreme conditions. The adjustment adjustable up to 60mm and the output damping is adjustable in multiple positions.
-
