Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 610.3701.52 Zimmermann

Brake Disc SPORT BRAKE DISC COAT Z 610.3701.52 Zimmermann Brake Disc SPORT BRAKE DISC COAT Z 610.3701.52 Zimmermann, Image 2

Product number: 0847050

Manufacturer number: 610.3701.52

EAN: 4250238751403

€ 81,44

Incl. VAT
View product specifications
In stock
Delivery 07-12-2024
Secure payment
  • Free 30 days exchanges
  • Quality car parts
  • EU Delivery: 2-3 days
  • Ask our experts for advice

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Please your vehicle

Model

X

Type

X

Searching parts for your car

  • Specifications

    Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

    These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

    Grooved design:

    • Perforated for better removal of gases
    • Rust-resistant coating

    Key benefits:

    • German quality
    • Less? Brake fading?
    • Better braking performance
    • Perfect fit

    Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

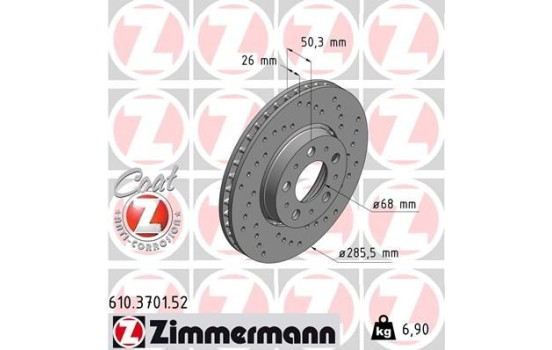

    Outer diameter [mm]286
    Fitting PositionFront Axle
    Rim Hole Number5
    Brake Disc TypePerforated
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]108
    Brake Disc TypeVentilated outside
    Centering Diameter [mm]68
    Hole Arrangement / Number10/5
    Inspection TagECE R90 APPROVED
    Guarantee2 years
    Height [mm]50
    Brake disc thickness (mm)26
    Minimum thickness (mm)23
    Weight [kg]6,9

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 17404
    € 39,77
    AP 24795 X
    AP X 24795
    AP 24795 V
    AP 24795
    ASHIKA 60-00-0350
    ASHIKA 60-00-0350C
    ASHUKI P330-057
    BELACO BDS1312
    BLUE PRINT ADF124361
    € 40,73
    BORG & BECK BBD4179
    BRECO BV 8421
    BRECO BS 8421
    BREMBO 09.8633.11
    € 45,01
    BREMBO 09.8633.1X
    € 96,66
    BREMBO 09.8633.75
    BREMBO 09.8633.10
    BREMSI CD7163V
    CHAMPION 562244CH
    DENCKERMANN B130395
    DON PCD11982
    Dr!ve+ DP1010.11.0334
    EUROBRAKE 5815204841
    EUROBRAKE 5815314841
    FEBI BILSTEIN 18044
    € 41,14
    FERODO DDF1163C
    € 60,96
    FTE 9072268
    FTE BS5226
    GIRLING 6042381
    HELLA 8DD 355 107-051
    HELLA PAGID 8DD 355 107-051
    JAPANPARTS DI-0350
    JAPANPARTS DI-0350C
    JAPKO 600350C
    JAPKO 600350
    Manufacturer Manufacturer number Price
    JURID 562244JC
    JURID 562244J
    KEY PARTS KBD4179
    MAGNETI MARELLI 361302040410
    MAPCO 15999
    MAPCO 15999C
    MAXGEAR 19-1296MAX
    € 45,26
    MAXGEAR 19-1296SPORT
    € 61,34
    MAXGEAR 19-1296
    € 43,76
    MAXTECH 883426
    METZGER 6110561
    MEYLE 515 521 5023
    € 55,39
    MINTEX MDC1432C
    NK 314841
    NK 204841
    OPTIMAL BS-6330C
    OPTIMAL BS-6330HC
    OPTIMAL BS-6330
    Omnicraft 2134504
    QUARO QD6482HC
    QUARO QD6482
    RAICAM RD00950
    ROTINGER RT 20045-GL T9
    ROTINGER RT 20045-GL T3
    ROTINGER RT 20045-GL
    ROTINGER RT 20045-GL T5
    ROTINGER RT 20045-GL T6
    ROTINGER RT 20045
    SWAG 55 91 8044
    TEXTAR 92100503
    € 69,11
    TRW DF4238
    € 52,44
    VALEO 186789
    WAGNER WGR1163-1
    ZIMMERMANN 610.3701.20
    € 47,15
    ZIMMERMANN 610.3701.52 (this product)

  • Applicability

    VOLVO
    S60 I
    S60 I (384) | 07.2000-04.2010 2.0 T - 1984ccm, 180pk, 132kw - B 5204 T5
    S60 I (384) | 07.2000-04.2010 2.4 - 2435ccm, 170pk, 125kw - B 5244 S
    S60 I (384) | 07.2000-04.2010 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2
    S60 I (384) | 07.2000-04.2010 2.4 Bifuel (CNG) - 2435ccm, 140pk, 103kw - B 5244 SG, B 5244 SG2
    S60 I (384) | 07.2000-04.2010 2.4 Bifuel (LPG) - 2435ccm, 140pk, 103kw - B 5244 SG2
    S60 I (384) | 07.2000-04.2010 2.4 D - 2401ccm, 130pk, 96kw - D 5244 T2
    S60 I (384) | 07.2000-04.2010 2.4 D - 2400ccm, 126pk, 93kw - D 5244 T7
    S60 I (384) | 07.2000-04.2010 2.4 T - 2435ccm, 200pk, 147kw - B 5244 T3
    S60 I (384) | 07.2000-04.2010 2.4 T AWD - 2435ccm, 200pk, 147kw - B 5244 T3
    S60 I (384) | 07.2000-04.2010 2.5 T - 2521ccm, 210pk, 154kw - B 5254 T2
    S60 I (384) | 07.2000-04.2010 2.5 T AWD - 2521ccm, 210pk, 154kw - B 5254 T2
    S60 I (384) | 07.2000-04.2010 D5 - 2400ccm, 163pk, 120kw - D 5244 T, D 5244 T5
    S60 I (384) | 07.2000-04.2010 D5 - 2401ccm, 185pk, 136kw - D 5244 T4
    S60 I (384) | 07.2000-04.2010 T5 - 2319ccm, 250pk, 184kw - B 5234 T3
    S60 I (384) | 07.2000-04.2010 T5 - 2319ccm, 265pk, 195kw - B 5234 T7
    S60 I (384) | 07.2000-04.2010 T5 - 2401ccm, 260pk, 191kw - B 5244 T5
    S80 I
    S80 I (184) | 05.1998-02.2008 2.0 - 1984ccm, 163pk, 120kw - B 5204 T4
    S80 I (184) | 05.1998-02.2008 2.0 T - 1984ccm, 226pk, 166kw - B 5204 T3
    S80 I (184) | 05.1998-02.2008 2.0 T - 1984ccm, 180pk, 132kw - B 5204 T5
    S80 I (184) | 05.1998-02.2008 2.4 - 2435ccm, 170pk, 125kw - B 5244 S
    S80 I (184) | 05.1998-02.2008 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2
    S80 I (184) | 05.1998-02.2008 2.4 Bifuel (CNG) - 2435ccm, 140pk, 103kw - B 5244 SG2
    S80 I (184) | 05.1998-02.2008 2.4 Bifuel (LPG) - 2435ccm, 140pk, 103kw - B 5244 SG
    S80 I (184) | 05.1998-02.2008 2.4 D - 2401ccm, 131pk, 96kw - D 5244 T2
    S80 I (184) | 05.1998-02.2008 2.4 T - 2435ccm, 200pk, 147kw - B 5244 T3
    S80 I (184) | 05.1998-02.2008 2.5 T - 2521ccm, 210pk, 154kw - B 5254 T2
    S80 I (184) | 05.1998-02.2008 2.5 T AWD - 2521ccm, 210pk, 154kw - B 5254 T2
    S80 I (184) | 05.1998-02.2008 2.5 TDI - 2460ccm, 140pk, 103kw - D 5252 T
    S80 I (184) | 05.1998-02.2008 2.9 - 2922ccm, 200pk, 147kw - B 6294 S
    S80 I (184) | 05.1998-02.2008 2.9 - 2922ccm, 204pk, 150kw - B 6304 S3
    S80 I (184) | 05.1998-02.2008 3.0 - 2922ccm, 196pk, 144kw - B 6294 S2
    S80 I (184) | 05.1998-02.2008 D5 - 2401ccm, 163pk, 120kw - D 5244 T
    S80 I (184) | 05.1998-02.2008 T5 AWD - 2435ccm, 200pk, 147kw - B 5244 T3
    S80 I (184) | 05.1998-02.2008 T6 - 2783ccm, 272pk, 200kw - B 6284 T
    S80 I (184) | 05.1998-02.2008 T6 - 2922ccm, 272pk, 200kw - B 6294 T
    V70 Mk
    V70 Mk II (285) | 11.1999-12.2008 2.0 T - 1984ccm, 180pk, 132kw - B 5204 T5
    V70 Mk II (285) | 11.1999-12.2008 2.3 - 2319ccm, 265pk, 195kw - B 5234 T7
    V70 Mk II (285) | 11.1999-12.2008 2.4 - 2435ccm, 170pk, 125kw - B 5244 S
    V70 Mk II (285) | 11.1999-12.2008 2.4 - 2435ccm, 140pk, 103kw - B 5244 S2
    V70 Mk II (285) | 11.1999-12.2008 2.4 Bifuel (CNG) - 2435ccm, 140pk, 103kw - B 5244 SG, B 5244 SG2
    V70 Mk II (285) | 11.1999-12.2008 2.4 Bifuel (LPG) - 2435ccm, 140pk, 103kw - B 5244 SG2
    V70 Mk II (285) | 11.1999-12.2008 2.4 D - 2401ccm, 131pk, 96kw - D 5244 T2
    V70 Mk II (285) | 11.1999-12.2008 2.4 D - 2400ccm, 126pk, 93kw - D 5244 T7
    V70 Mk II (285) | 11.1999-12.2008 2.4 T - 2435ccm, 200pk, 147kw - B 5244 T3
    V70 Mk II (285) | 11.1999-12.2008 2.4 T AWD - 2435ccm, 200pk, 147kw - B 5244 T3
    V70 Mk II (285) | 11.1999-12.2008 2.5 AWD - 2521ccm, 211pk, 155kw - B 5254 T2
    V70 Mk II (285) | 11.1999-12.2008 2.5 T - 2521ccm, 209pk, 154kw - B 5254 T2
    V70 Mk II (285) | 11.1999-12.2008 2.5 T AWD - 2521ccm, 209pk, 154kw - B 5254 T2
    V70 Mk II (285) | 11.1999-12.2008 2.5 TDI - 2460ccm, 140pk, 103kw - D 5252 T
    V70 Mk II (285) | 11.1999-12.2008 D5 - 2401ccm, 163pk, 120kw - D 5244 T, D 5244 T2, D 5244 T5
    V70 Mk II (285) | 11.1999-12.2008 D5 - 2401ccm, 185pk, 136kw - D 5244 T4
    V70 Mk II (285) | 11.1999-12.2008 D5 AWD - 2401ccm, 163pk, 120kw - D 5244 T, D 5244 T2, D 5244 T5
    V70 Mk II (285) | 11.1999-12.2008 D5 AWD - 2401ccm, 185pk, 136kw - D 5244 T4
    V70 Mk II (285) | 11.1999-12.2008 T5 - 2319ccm, 250pk, 184kw - B 5234 T3
    V70 Mk II (285) | 11.1999-12.2008 T5 - 2401ccm, 260pk, 191kw - B 5244 T5
    XC70 I
    XC70 I Cross Country (295) | 10.1997-08.2007 2.4 T XC AWD - 2435ccm, 200pk, 147kw - B 5244 T3
    XC70 I Cross Country (295) | 10.1997-08.2007 2.5 T XC AWD - 2521ccm, 209pk, 154kw - B 5254 T2
    XC70 I Cross Country (295) | 10.1997-08.2007 D5 AWD - 2401ccm, 185pk, 136kw - D 5244 T4
    XC70 I Cross Country (295) | 10.1997-08.2007 D5 XC AWD - 2401ccm, 163pk, 120kw - D 5244 T

  • Original part numbers

    272 403 VOLVO
    272 403 7 VOLVO
    31 262 706 VOLVO
    31 400 739 VOLVO
    31 471 830 VOLVO
    31400739 VOLVO

  • Manufacturer

    Zimmermann
    Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust-RD: Z)
    - Standard brake discs
    - Sports brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums
