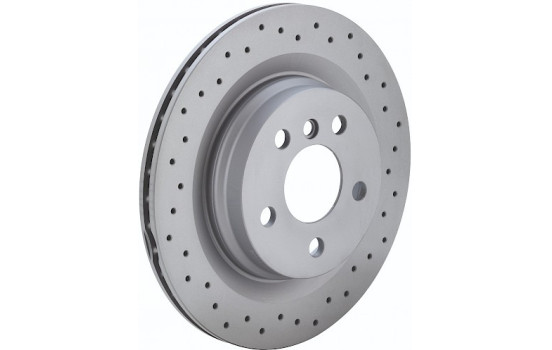

Brake Disc SPORT BRAKE DISC COAT Z 470.2432.52 Zimmermann
Product number: 0846943
Manufacturer number: 470.2432.52
EAN: 4250238747185
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications
Give your brake system an upgrade with the Zimmerman Sport Z brake discs.
These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.
Grooved design:
- Perforated for better removal of gases
- Rust-resistant coating
Key benefits:
- German quality
- Less? Brake fading?
- Better braking performance
- Perfect fit
Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

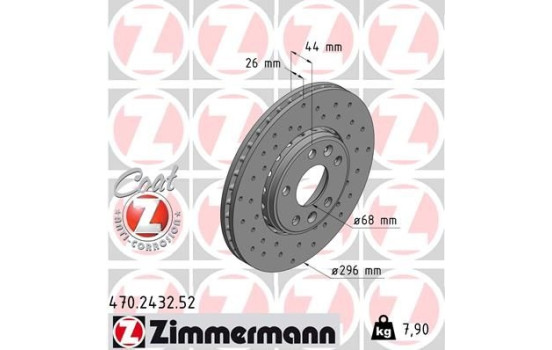

Outer diameter [mm] 296 Rim Hole Number 5 Brake Disc Type Perforated Surface Coated Brake pads Exclusive Bolt Hole Circle Ø [mm] 114 Brake Disc Type Ventilated outside Centering Diameter [mm] 68 Hole Arrangement / Number 7/5 Machining High-carbon Inspection Tag KBA 60872 Guarantee 2 years Height [mm] 44 Brake disc thickness (mm) 26 Minimum thickness (mm) 23,4 Weight [kg] 7,9 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17977 AP 25318 AP 25318 V ASAM 74971 ASHUKI P330-106 AUTOMOTOR France PDC4020 BELACO BDS1030 BLUE PRINT ADR164303 BLUE PRINT ADR164335 BORG & BECK BBD4780 BOSCH 0 986 479 551 BOSCH 0 986 479 S93 BRECO BV 8928 BRECO BS 8928 BREMBO 09.B353.10 BREMBO 09.B353.11 BREMSI CD7726V CHAMPION 562595CH DENCKERMANN B130595 DJ PARTS BD2819 DON PCD11432 Dr!ve+ DP1010.11.0629 EUROBRAKE 5815203971 EUROBRAKE 5815313971 FEBI BILSTEIN 43942 FEBI BILSTEIN 108582 FERODO DDF1726 FERODO DDF1726C FI.BA FBD496 FREMAX BD-4668 FTE 9071029 FTE BS7238 GIRLING 6061841 HELLA 8DD 355 116-161 HELLA 8DD 355 129-131 HELLA PAGID 8DD 355 116-161 HELLA PAGID 8DD 355 129-131 JURATEK REN185 JURID 562595JC KAWE 61344 10 KEY PARTS KBD4780 Manufacturer Manufacturer number Price KRAFT AUTOMOTIVE 6045462 MAGNETI MARELLI 361302040606 MASTER-SPORT 24012601581-PCS-MSP MASTER-SPORT 24012601581-SET-MSP MASTER-SPORT 24012601581-SET-MS MASTER-SPORT 24012601581-PCS-MS MAXGEAR 19-2013SPORT MAXGEAR 19-2013MAX MAXGEAR 19-2013 MAXTECH 875379 METZGER 6110356 MEYLE 16-15 521 0041 MEYLE 16-15 521 0041/PD MINTEX MDC2196 NK 313971 NK 203971 OPEN PARTS BDA2546.20 OPTIMAL BS-8306HC OPTIMAL BS-8306 Omnicraft 2134457 QUARO QD6967 QUARO QD6967HC REMSA 61344.10 ROADHOUSE 61344.10 ROTINGER RT 4505-GL T6 ROTINGER RT 4505-GL T9 ROTINGER RT 4505-GL ROTINGER RT 4505 ROTINGER RT 4505-GL T5 ROTINGER RT 4505-GL T3 SWAG 60 94 3942 SWAG 33 10 0129 TEXTAR 92195603 TOPRAN 700 802 TRW DF6184 VAICO V46-80019 VALEO 197539 WOKING D61344.10 ZIMMERMANN 470.2432.20 ZIMMERMANN 470.2432.52 (this product) -
Applicability
RENAULT GRAND SCÉNIC GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 1.2 TCe (JZ11, JZ28) - 1197ccm, 116pk, 85kw - H5F 400 GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 1.2 TCe (JZ16) - 1197ccm, 132pk, 97kw - H5F 404 GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 1.4 16V (JZ0F) - 1397ccm, 131pk, 96kw - H4J 700 GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 1.5 dCi (JZ02, JZ0R) - 1461ccm, 95pk, 70kw - K9K 846 GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 1.5 dCi (JZ09, JZ0D, JZ10, JZ14, JZ1G, JZ29, JZ2C) - 1461ccm, 110pk, 81kw - K9K 836, K9K 636, K9K 656, K9K 657, K9K 837 GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 1.5 dCi (JZ0B, JZ07) - 1461ccm, 106pk, 78kw - K9K 832 GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 1.6 16V (JZ0U) - 1598ccm, 109pk, 81kw - K4M 858 GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 1.6 16V Bifuel (JZ1Y) - 1598ccm, 107pk, 79kw - K4M 866 GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 1.6 16V Bifuel (JZ1Y) - 1598ccm, 110pk, 81kw - K4M 866 GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 1.6 dCi (JZ00, JZ12) - 1598ccm, 130pk, 96kw - R9M 402, R9M 404, R9M 414 GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 1.6 E85 (JZ03, JZ1Y) - 1598ccm, 110pk, 81kw - K4M 866 GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 1.9 dCi (JZ0J, JZ0N, JZ1K, JZ1S) - 1870ccm, 131pk, 96kw - F9Q 870, F9Q 872 GRAND SCÉNIC III (JZ0/1_) | 02.2009-09.2016 2.0 16V (JZ0G) - 1997ccm, 140pk, 103kw - M4R 711 LAGUNA Coupe LAGUNA Coupe (DT0/1) | 09.2008-12.2015 2.0 16V Turbo - 1998ccm, 170pk, 125kw - F4R 811, F4Rt 811 LAGUNA Coupe (DT0/1) | 09.2008-12.2015 2.0 dCi (DT01, DT08, DT09, DT0K, DT12, DT1C, DT1D, DT1M,... - 1995ccm, 150pk, 110kw - M9R 744, M9R 802, M9R 805, M9R 814, M9R 854, M9R 858, M9R 748, M9R 754, M9R 808, M9R 845 LAGUNA Coupe (DT0/1) | 09.2008-12.2015 2.0 dCi (DT0M, DT0N, DT0S, DT19, DT1F) - 1995ccm, 173pk, 127kw - M9R 815, M9R 800, M9R 809, M9R 854, M9R 806, M9R 857, M9R 849 LAGUNA Coupe (DT0/1) | 09.2008-12.2015 3.0 dCi (DT03) - 2998ccm, 235pk, 173kw - V9X 891, V9X 791 LAGUNA III LAGUNA III (BT0/1) | 10.2007-12.2015 2.0 16V (BT05, BT0F, BT0W) - 1998ccm, 140pk, 103kw - M4R 704 LAGUNA III (BT0/1) | 10.2007-12.2015 2.0 16V Hi-Flex (BT1H, BT1G, BT1K) - 1997ccm, 140pk, 103kw - M4R 726 LAGUNA III (BT0/1) | 10.2007-12.2015 2.0 16V Turbo - 1998ccm, 170pk, 125kw - F4R 811 LAGUNA III (BT0/1) | 10.2007-12.2015 2.0 dCi (BT01, BT08, BT09, BT0E, BT0K, BT12, BT1C, BT1D,... - 1995ccm, 150pk, 110kw - M9R 742, M9R 744, M9R 802, M9R 805, M9R 814, M9R 854, M9R 858, M9R 746, M9R 748, M9R 754, M9R 808, M9R 845 LAGUNA III (BT0/1) | 10.2007-12.2015 2.0 dCi (BT07, BT0J, BT14, BT1A, BT1S) - 1995ccm, 131pk, 96kw - M9R 742, M9R 744, M9R 802, M9R 814, M9R 854, M9R 858 LAGUNA III (BT0/1) | 10.2007-12.2015 2.0 dCi (BT0M, BT0N, BT0S, BT19, BT1F) - 1995ccm, 173pk, 127kw - M9R 815, M9R 800, M9R 809, M9R 854, M9R 858, M9R 806, M9R 857, M9R 849 LAGUNA III Sport Tourer (KT0/1) | 10.2007-12.2015 2.0 16V (KT0F, KT0W) - 1998ccm, 140pk, 103kw - M4R 704 LAGUNA III Sport Tourer (KT0/1) | 10.2007-12.2015 2.0 16V Hi-Flex (KT1H, KT1G, KT1K) - 1997ccm, 140pk, 103kw - M4R 704, M4R 726 LAGUNA III Sport Tourer (KT0/1) | 10.2007-12.2015 2.0 16V Turbo - 1998ccm, 170pk, 125kw - F4R 811 LAGUNA III Sport Tourer (KT0/1) | 10.2007-12.2015 2.0 dCi (KT01, KT08, KT09, KT0K, KT12, KT1D, KT1W) - 1995ccm, 150pk, 110kw - M9R 742, M9R 744, M9R 802, M9R 805, M9R 814, M9R 854, M9R 858, M9R 808, M9R 845 LAGUNA III Sport Tourer (KT0/1) | 10.2007-12.2015 2.0 dCi (KT07, KT0J, KT14, KT1A, KT1S) - 1995ccm, 131pk, 96kw - M9R 742, M9R 744, M9R 802, M9R 814, M9R 854, M9R 858 LAGUNA III Sport Tourer (KT0/1) | 10.2007-12.2015 2.0 dCi (KT0M, KT0N, KT0S, KT19, KT1F) - 1995ccm, 173pk, 127kw - M9R 815, M9R 800, M9R 809, M9R 854, M9R 858, M9R 806, M9R 857, M9R 849 LATITUDE LATITUDE (L70_) | 07.2010-??? 1.5 dCi (L70R, L731) - 1461ccm, 110pk, 81kw - K9K 782, K9K 849 LATITUDE (L70_) | 07.2010-??? 2.0 16V (L70B) - 1997ccm, 140pk, 103kw - M4R 746 LATITUDE (L70_) | 07.2010-??? 2.0 dCi 150 (L70H) - 1995ccm, 150pk, 110kw - M9R 824, M9R 846 LATITUDE (L70_) | 07.2010-??? 2.0 dCi 175 (L70Y, L734) - 1995ccm, 173pk, 127kw - M9R 804, M9R 817, M9R 844, M9R 839 LATITUDE (L70_) | 07.2010-??? 2.5 V6 (L702, L703, L704, L707) - 2495ccm, 177pk, 130kw - 2ZV 604 MEGANE CC MEGANE CC (EZ0/1_) | 06.2010-08.2015 2.0 dCi (EZ0L) - 1995ccm, 160pk, 118kw - M9R 610 MEGANE CC (EZ0/1_) | 06.2010-08.2015 2.0 TCe (EZ1T) - 1998ccm, 180pk, 132kw - F4R 870, F4R 872 MEGANE III MEGANE III Coupe (DZ0/1_) | 11.2008-09.2016 2.0 dCi - 1995ccm, 163pk, 120kw - M9R 610 MEGANE III Coupe (DZ0/1_) | 11.2008-09.2016 2.0 dCi (DZ0L) - 1995ccm, 160pk, 118kw - M9R 610 MEGANE III Coupe (DZ0/1_) | 11.2008-09.2016 2.0 dCi (DZ0Y) - 1995ccm, 150pk, 110kw - M9R 615 MEGANE III Coupe (DZ0/1_) | 11.2008-09.2016 2.0 TCe - 1998ccm, 190pk, 140kw - F4R 872 MEGANE III Coupe (DZ0/1_) | 11.2008-09.2016 2.0 TCe (DZ0K) - 1998ccm, 180pk, 132kw - F4R 870 MEGANE III Coupe (DZ0/1_) | 11.2008-09.2016 2.0 TCe (DZ1N) - 1998ccm, 250pk, 184kw - F4R 874 MEGANE III Coupe (DZ0/1_) | 11.2008-09.2016 2.0 TCe 220 - 1998ccm, 220pk, 162kw - F4R 874 MEGANE III Grandtour (KZ0/1) | 11.2008-01.2016 2.0 dCi - 1995ccm, 163pk, 120kw - M9R 610 MEGANE III Grandtour (KZ0/1) | 11.2008-01.2016 2.0 dCi (KZ0L) - 1995ccm, 160pk, 118kw - M9R 610 MEGANE III Grandtour (KZ0/1) | 11.2008-01.2016 2.0 dCi (KZ0Y) - 1995ccm, 150pk, 110kw - M9R 615 MEGANE III Grandtour (KZ0/1) | 11.2008-01.2016 2.0 TCe - 1998ccm, 190pk, 140kw - F4R 872 MEGANE III Grandtour (KZ0/1) | 11.2008-01.2016 2.0 TCe - 1998ccm, 220pk, 162kw - F4R 874 MEGANE III Grandtour (KZ0/1) | 11.2008-01.2016 2.0 TCe (KZ0K, KZ1T) - 1998ccm, 180pk, 132kw - F4R 870, F4R 872 MEGANE III Hatchback (BZ0/1_, B3_) | 11.2008-03.2017 2.0 dCi - 1995ccm, 163pk, 120kw - M9R 610 MEGANE III Hatchback (BZ0/1_, B3_) | 11.2008-03.2017 2.0 dCi (BZ0L) - 1995ccm, 160pk, 118kw - M9R 610 MEGANE III Hatchback (BZ0/1_, B3_) | 11.2008-03.2017 2.0 dCi (BZ0Y) - 1995ccm, 150pk, 110kw - M9R 615 MEGANE III Hatchback (BZ0/1_, B3_) | 11.2008-03.2017 2.0 TCe - 1998ccm, 190pk, 140kw - F4R 872 MEGANE III Hatchback (BZ0/1_, B3_) | 11.2008-03.2017 2.0 TCe (BZ0K) - 1998ccm, 180pk, 132kw - F4R 870 MEGANE III Hatchback (BZ0/1_, B3_) | 11.2008-03.2017 2.0 TCe 220 - 1998ccm, 220pk, 162kw - F4R 874 SCÉNIC III SCÉNIC III (JZ0/1_) | 12.2008-09.2016 1.2 TCe - 1197ccm, 116pk, 85kw - H5F 400 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 1.2 TCe (JZ16) - 1197ccm, 132pk, 97kw - H5F 404, H5F 408 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 1.4 16V (JZ0F, JZ1V) - 1397ccm, 131pk, 96kw - H4J 700 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 1.5 dCi - 1461ccm, 86pk, 63kw - K9K 830 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 1.5 dCi - 1461ccm, 106pk, 78kw - K9K 832 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 1.5 dCi - 1461ccm, 110pk, 81kw - K9K 836, K9K 636, K9K 656, K9K 657, K9K 837 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 1.5 dCi (JZ02, JZ0R) - 1461ccm, 95pk, 70kw - K9K 846 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 1.6 16V (JZ0U, JZ1B) - 1598ccm, 110pk, 81kw - K4M 858, K4M R 858 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 1.6 16V Bifuel - 1598ccm, 110pk, 81kw - K4M 866 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 1.6 dCi (JZ00, JZ12) - 1598ccm, 130pk, 96kw - R9M 402, R9M 404, R9M 414 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 1.6 E85 (JZ03, JZ1Y) - 1598ccm, 110pk, 81kw - K4M 866 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S) - 1870ccm, 131pk, 96kw - F9Q 870, F9Q 872 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 2.0 16V (JZ0G, JZ0P, JZ1E, JZ1P) - 1997ccm, 140pk, 103kw - M4R 711, M4R 713, M4R 710 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 2.0 dCi (JZ0L) - 1995ccm, 160pk, 118kw - M9R 610 SCÉNIC III (JZ0/1_) | 12.2008-09.2016 2.0 dCi (JZ0Y, JZ26) - 1995ccm, 150pk, 110kw - M9R 615 -
Original part numbers
4020 600 02R RENAULT 4020 668 13R RENAULT 4020 670 23R RENAULT 4020 644 08R RENAULT 4020 669 49R RENAULT -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
