Brake Disc COAT Z 250.1380.20 Zimmermann

Video

Product number: 0847417

Manufacturer number: 250.1380.20

EAN: 4250238766339

€ 78,¹⁶

Incl. VAT

View product specifications

Immediately available

Delivery Tomorrow

Quantity:

Secure payment

Free 30 days exchanges
Quality car parts
EU Delivery: 2-3 days
Ask our experts for advice

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Please manually select your vehicle

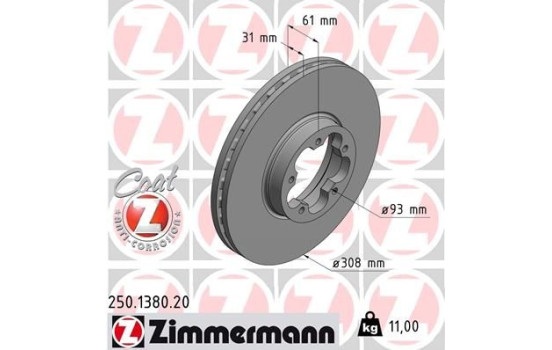

Specifications

Outer diameter [mm]	308
Rim Hole Number	5
Brake Disc Type	Internal ventilation
Surface	Coated
Brake pads	Exclusive
Bolt Hole Circle Ø [mm]	113
Centering Diameter [mm]	93
Hole Arrangement / Number	5/5
Registration Type	Approved for vehicles in class M1/N1
Inspection Tag	ECE R90 APPROVED
Guarantee	2 years
Height [mm]	61
Brake disc thickness (mm)	31
Minimum thickness (mm)	28
Weight [kg]	11,00

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
A.B.S.	18470	€ 48,34
AP	25606 V
ATE	24.0131-0100.1	€ 87,80
BELACO	BDS1474
BLUE PRINT	ADF124353	€ 55,27
BORG & BECK	BBD6074S
BOSCH	0 986 479 C99	€ 47,07
BRECO	BV 9216
BREMBO	09.C644.11	€ 66,55
BREMSI	CD8468V
BSG	BSG 30-210-029
CAR	142.2086
CIFAM	800-1801C
COMLINE	ADC1266V
DJ PARTS	BD2607
DON	PCD19611
EUROBRAKE	5815202594
EUROBRAKE	5815312594
FAST	FT31009
FEBI BILSTEIN	108689	€ 54,56
FERODO	DDF2468-1	€ 62,11
FREMAX	BD-6548
FTE	9071223
FTE	BS7834
HELLA	8DD 355 122-801
HELLA PAGID	8DD 355 122-801	€ 59,19
JP GROUP	1563106300
JURATEK	FOR186

Manufacturer	Manufacturer number	Price
JURID	563122J-1
KEY PARTS	KBD6074S
LYNXauto	BN-1477
MAGNETI MARELLI	361302040663
METELLI	23-1801C
METZGER	6110767
MEYLE	715 521 0042/PD	€ 76,63
MINTEX	MDC2696
MOTAQUIP	LVBD1741
NATIONAL	NBD1854
NK	202594
NK	312594
OPTIMAL	BS-9284HC
QUARO	QD8785
RAICAM	RD01464
ROTINGER	RT 21690
ROTINGER	RT 21690-GL T6
ROTINGER	RT 21690-GL T3
ROTINGER	RT 21690-GL
ROTINGER	RT 21690-GL T9
ROTINGER	RT 21690-GL T5
SKF	VKBD 81097 V1
SWAG	33 10 0168
TEXTAR	92274303	€ 82,96
TRISCAN	8120 16184C
TRUSTING	DF1801
VAICO	V25-80032
ZIMMERMANN	250.1380.20	(this product)

Applicability

FORD

	TRANSIT V363
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 105pk, 77kw - YLF6, YLFS, BJFA, BJFB, YLFA, YLFB
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 130pk, 96kw - YMF6, YMFS, BKFA, BKFB, YMFA, YMFB
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 170pk, 125kw - YNF6, YNFS, BLFA, BLFB, YNFA, YNFB
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 130pk, 96kw - BKFC, BKFD
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 170pk, 125kw - BLFC, BLFD
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 170pk, 125kw - BLHA, YNHA
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 130pk, 96kw - YMHA, BKHA
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi - 2198ccm, 155pk, 114kw - CVF5
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi - 2198ccm, 125pk, 92kw - CY14, CYF5, CYFG, USF6
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi - 2198ccm, 100pk, 74kw - DRFF, DRFG, DRF5
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CY24, CYR5
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CV24, CVR5, UYR6
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRR5
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 135pk, 99kw - UHR5
	TRANSIT V363 Bus (FAD, FBD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - USR6, CYR5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 105pk, 77kw - YLF6, YLFS, BJFA, BJFB, YLFA, YLFB
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 130pk, 96kw - YMF6, YMFS, BKFA, BKFB, YMFA, YMFB
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 170pk, 125kw - YNF6, YNFS, BLFA, BLFB, YNFA, YNFB
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 130pk, 96kw - BKFC, BKFD
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 170pk, 125kw - BLFC, BLFD
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.0 EcoBlue mHEV RWD - 1995ccm, 130pk, 96kw - BKRB
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.0 EcoBlue mHEV RWD - 1995ccm, 170pk, 125kw - BLRB
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 185pk, 136kw - BCRA, BCRB
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 105pk, 77kw - YLR6, BJRA, YLRA
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 130pk, 96kw - YMR6, YMHA, BKRA
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 170pk, 125kw - YNR6, BLHA, BLRA, YNHA
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.2 TDCi - 2198ccm, 155pk, 114kw - CVF5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.2 TDCi - 2198ccm, 125pk, 92kw - CY14, CYF5, CYFG, USF6
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.2 TDCi - 2198ccm, 100pk, 74kw - DRFF, DRFG, DRF5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 155pk, 114kw - CV24, CVR5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CY24, CYR5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CV24, CVR5, UYR6, CYR5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRR5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 135pk, 99kw - UHR5
	TRANSIT V363 Platform/Chassis (FED, FFD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - USR6, CYR5
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 185pk, 136kw - BCFB
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 105pk, 77kw - YLF6, YLFS, BJFA, BJFB, YLFA, YLFB
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 130pk, 96kw - YMF6, YMFS, BKFA, BKFB, YMFA, YMFB
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 170pk, 125kw - YNF6, YNFS, BLFA, BLFB, YNFA, YNFB
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue 4x4 - 1995ccm, 130pk, 96kw - YMR6, BKRA, YMRA
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue 4x4 - 1995ccm, 170pk, 125kw - YNR6, BLRA, YNRB
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 130pk, 96kw - BKFC, BKFD
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 170pk, 125kw - BLFC, BLFD
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue mHEV RWD - 1995ccm, 130pk, 96kw - BKRB
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue mHEV RWD - 1995ccm, 170pk, 125kw - BLRB
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 185pk, 136kw - BCRA, BCRB
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 105pk, 77kw - YLR6, BJRA, YLRA
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 130pk, 96kw - YMR6, YMHA, BKRA
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 170pk, 125kw - YNR6, BLHA, BLRA, YNHA
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.2 TDCi - 2198ccm, 155pk, 114kw - CVF5
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.2 TDCi - 2198ccm, 125pk, 92kw - CY14, CYF5, CYFG, USF6
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.2 TDCi - 2198ccm, 100pk, 74kw - DRFF, DRFG, DRF5
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 155pk, 114kw - CV24, CVR5
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CY24, CYR5
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CV24, CVR5, UYR6
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRR5
	TRANSIT V363 Van (FCD, FDD) \| 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - USR6, CYR5

Original part numbers

1 822 205	FORD
BK31-1125-AC	FORD
2 226 523	FORD
1 812 200	FORD
KK31-1125-AA	FORD
BK31-1125-AB	FORD

Manufacturer

Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
