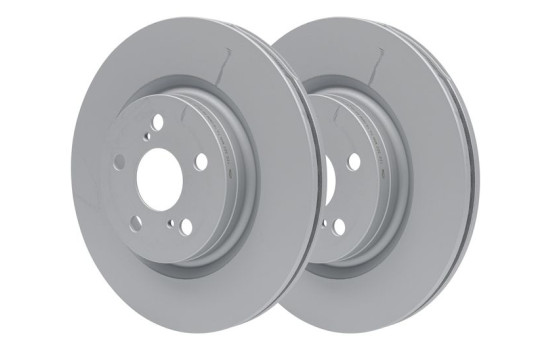

Brake disc 24.0122-0322.1 ATE
Product number: 1974531
Manufacturer number: 24.0122-0322.1
EAN: 4006633466936
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications

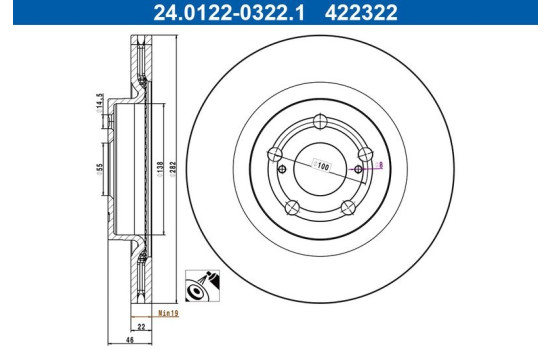

Outer diameter [mm] 282,0 Brake Disc Type Vented Surface Coated Number of Holes 5 Brake pads Exclusive Inner diameter [mm] 138,0 Bolt Hole Circle Ø [mm] 100,0 Centering Diameter [mm] 55,0 Bore Ø [mm] 14,5 Inspection Tag E1 90R-02C0115/1323 MAPP code available Guarantee 2 years Height [mm] 46,0 Brake disc thickness (mm) 22,0 Minimum thickness (mm) 19,0 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 18928 ATE 24.0122-0322.1 (this product) BELACO BDS2270 DON PCD22182 HELLA 8DD 355 134-381 Manufacturer Manufacturer number Price HELLA PAGID 8DD 355 134-381 HERTH+BUSS JAKOPARTS J3302212 KAVO PARTS BR-10062-C MINTEX MDC3024C TEXTAR 92333503 -
Applicability
TOYOTA YARIS YARIS (_P21_, _PA1_, _PH1_) | 02.2020-??? 1.0 (KSP211) - 998ccm, 72pk, 53kw - 1KR-FE YARIS (_P21_, _PA1_, _PH1_) | 02.2020-??? 1.5 (MXPA11) - 1490ccm, 125pk, 92kw - M15A-FKS YARIS (_P21_, _PA1_, _PH1_) | 02.2020-??? 1.5 Hybrid (MXPH10, MXPH11) - 1490ccm, 116pk, 85kw - M15A-FXE YARIS (_P21_, _PA1_, _PH1_) | 02.2020-??? 1.5 Hybrid (MXPH13) - 1490ccm, 131pk, 96kw - M15A-FXE -
Original part numbers
43512-K0040 TOYOTA -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
