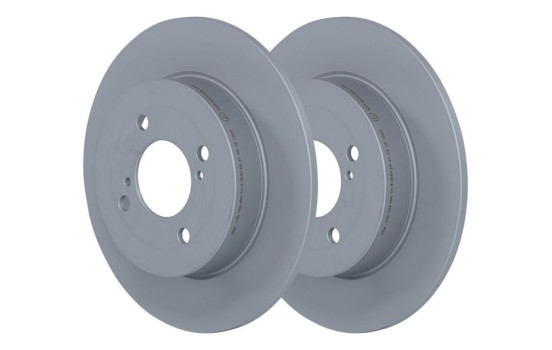

Brake disc 24.0109-0189.1 ATE
Product number: 1771412
Manufacturer number: 24.0109-0189.1
EAN: 4006633469357
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications

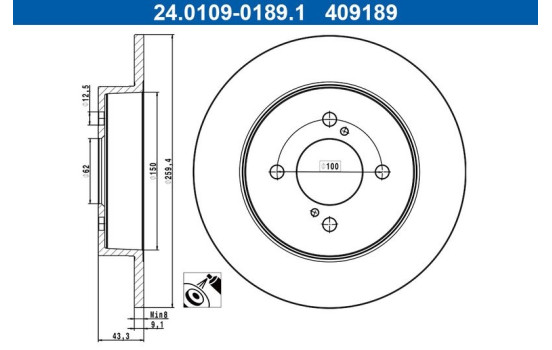

Outer diameter [mm] 259,4 Brake Disc Type Complete Surface Coated Number of Holes 4 Brake pads Exclusive Inner diameter [mm] 150,0 Bolt Hole Circle Ø [mm] 100,0 Centering Diameter [mm] 62,0 Inspection Tag E1 90R-02C0165/1035 MAPP code available Guarantee 2 years Height [mm] 43,3 Brake disc thickness (mm) 9,1 Minimum thickness (mm) 8,0 Hole diameter [mm] 12,5 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 18268 ATE 24.0109-0189.1 (this product) BELACO BDS2124 BORG & BECK BBD5209 BOSCH 0 986 479 V07 CIFAM 800-1758C DON PCD16202 Manufacturer Manufacturer number Price HELLA 8DD 355 118-511 HELLA PAGID 8DD 355 118-511 HERTH+BUSS JAKOPARTS J3318011 METELLI 23-1758C MINTEX MDC2383 TEXTAR 92242303 TRUSTING DF1758 -
Applicability
SUZUKI SWIFT III SWIFT III (FZ, NZ) | 10.2010-??? 1.2 (AZG412, ZC72S) - 1242ccm, 90pk, 66kw - K12B SWIFT III (FZ, NZ) | 10.2010-??? 1.2 (AZH412, AZG412, ZC72S) - 1242ccm, 91pk, 67kw - K12B SWIFT III (FZ, NZ) | 10.2010-??? 1.2 4WD (AZH412, AZG412, ZD72S) - 1242ccm, 91pk, 67kw - K12B SWIFT III (FZ, NZ) | 10.2010-??? 1.2 4x4 (AZG412, ZD72S) - 1242ccm, 90pk, 66kw - K12B SWIFT III (FZ, NZ) | 10.2010-??? 1.2 4x4 (AZH412, ZD72S) - 1242ccm, 94pk, 69kw - K12B SWIFT III (FZ, NZ) | 10.2010-??? 1.6 (AZG416, AZH416, RS416, ZC32S, ZA32S) - 1586ccm, 136pk, 100kw - M16A -
Original part numbers
55611-71L00 SUZUKI 55611-71L01 SUZUKI -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
