Brake Disc 09.6710.10 Brembo
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications

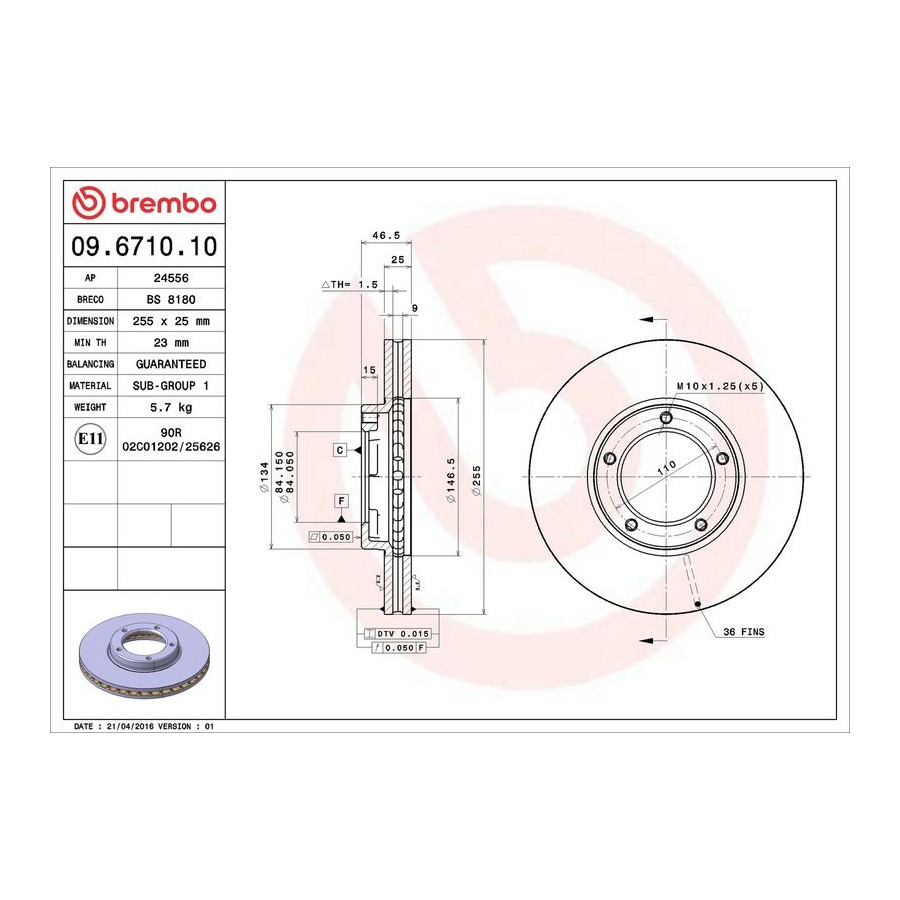

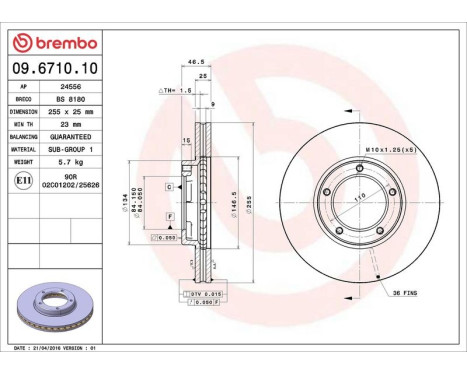

Outer diameter [mm] 255 Brake Disc Type Internally Vented Internal ventilation Diameter [mm] 255 Surface No coating Number of Holes 5 Brake pads Exclusive Centering Diameter [mm] 84 Guarantee 2 years Height [mm] 47 Brake disc thickness (mm) 25 Minimum thickness (mm) 23 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 16235 ASHIKA 60-02-268C ASHIKA 60-02-268 BELACO BDS2139 BLUE PRINT ADT34360 BORG & BECK BBD5105 BREMBO 09.6710.10 (this product) BREMSI CD6703V CAR HPD 641 CAR 142.641 COMLINE ADC0142V DELPHI BG3174 EUROBRAKE 5815209949 FEBI BILSTEIN 29980 FERODO DDF416 FERODO DDF703 FREMAX BD-2609 FREMAX BD-5180 FTE BS4818 FTE 9072410 GIRLING 6027451 HELLA 8DD 355 105-181 HELLA PAGID 8DD 355 105-181 HERTH+BUSS JAKOPARTS J3302068 ICER 78BD2609-2 Manufacturer Manufacturer number Price JAPANPARTS DI-268C JAPANPARTS DI-268 JAPANPARTS DI268JM JAPKO 60268 JAPKO 60268C JURID 561746J KAWE 61247 10 KLAXCAR FRANCE 25104z LPR T2761V MAXTECH 861209 MINTEX MDC1072 MOTAQUIP LVBE135Z NIPPARTS J3302068 NK 209949 NPS T330A68 OPTIMAL BS-7200C OPTIMAL BS-7200 QUINTON HAZELL BDC4818 R BRAKE 78RBD22609 REMSA 61247.10 ROADHOUSE 61247.10 SWAG 81 92 9980 TEXTAR 92080300 TRW DF2745 WOKING D61247.10 -
Applicability
TOYOTA HIACE IV HIACE IV Van (_H1_) | 08.1989-08.2004 2.0 (RZH102, RZH112) - 1998ccm, 101pk, 74kw - 1RZ HIACE IV Van (_H1_) | 08.1989-08.2004 2.4 (RZH10) - 2438ccm, 120pk, 88kw - 2RZ-E HIACE IV Van (_H1_) | 08.1989-08.2004 2.4 D (LH102, LH104, LH112) - 2446ccm, 78pk, 57kw - 2L HIACE IV Van (_H1_) | 08.1989-08.2004 2.4 D (LH112) - 2446ccm, 75pk, 55kw - 2L HIACE IV Van (_H1_) | 08.1989-08.2004 2.8 D (LH105, LH103, LH113) - 2779ccm, 83pk, 61kw - 3L REGIUS IV REGIUS IV MPV (_H1_) | 08.1987-12.2004 2.0 (RZH102, RZH112) - 1998ccm, 101pk, 74kw - 1RZ REGIUS IV MPV (_H1_) | 08.1987-12.2004 2.4 (RZH103, RZH183) - 2438ccm, 120pk, 88kw - 2RZ-E REGIUS IV MPV (_H1_) | 08.1987-12.2004 2.4 D (LH100, LH110, LH104, LH114) - 2446ccm, 78pk, 57kw - 2L REGIUS IV MPV (_H1_) | 08.1987-12.2004 2.4 D (LH102) - 2446ccm, 75pk, 55kw - 2L REGIUS IV MPV (_H1_) | 08.1987-12.2004 2.8 D (LH105, LH125) - 2779ccm, 83pk, 61kw - 3L -
Original part numbers
4351226090 TOYOTA -
Manufacturer
Brembo is the undisputed leader in the production and development of brake parts for the automotive industry. Brembo stands for the best braking performance for your car. Brembo has built up enormous expertise to be able to develop and produce a wide variety of products. From brake pads and discs for over 96% of all passenger cars in Europe, America and Asia, to extreme braking systems used in Supercars and Formula 1.
The technical innovation and durability of Brembo brake pads and brake discs is guaranteed because all important processes such as design, production and testing are under one roof. As a result, Brembo brake pads and brake discs always deliver the best performance, time after time.
Brembo sport brake discs are cast, finished and tested by Brembo itself, so that exceptional quality can be guaranteed. Every newly produced Brembo brake disc thus has the same exceptional quality as the previous one.
Brembo brake parts distinguish themselves on the following points:
• Coverage of over 96% of the worldwide passenger car fleet
• Top quality
• Sportsmanship
• Better braking performance than other manufacturers
• Number 1 braking system used in sports cars and Formula 1
We currently have the following Brembo products in our range:
• Brake pads
• Brake discs
• Brake Shoe Set
• Wear Indicators
• Brake drums
• Calipers
• Brake hoses
• Wheel brake cylinders
• Master cylinders
• Penetrating Oil & Lubricants
• Brake power distributors
Is sportsmanship important to you? Then order Brembo brake parts!
-
